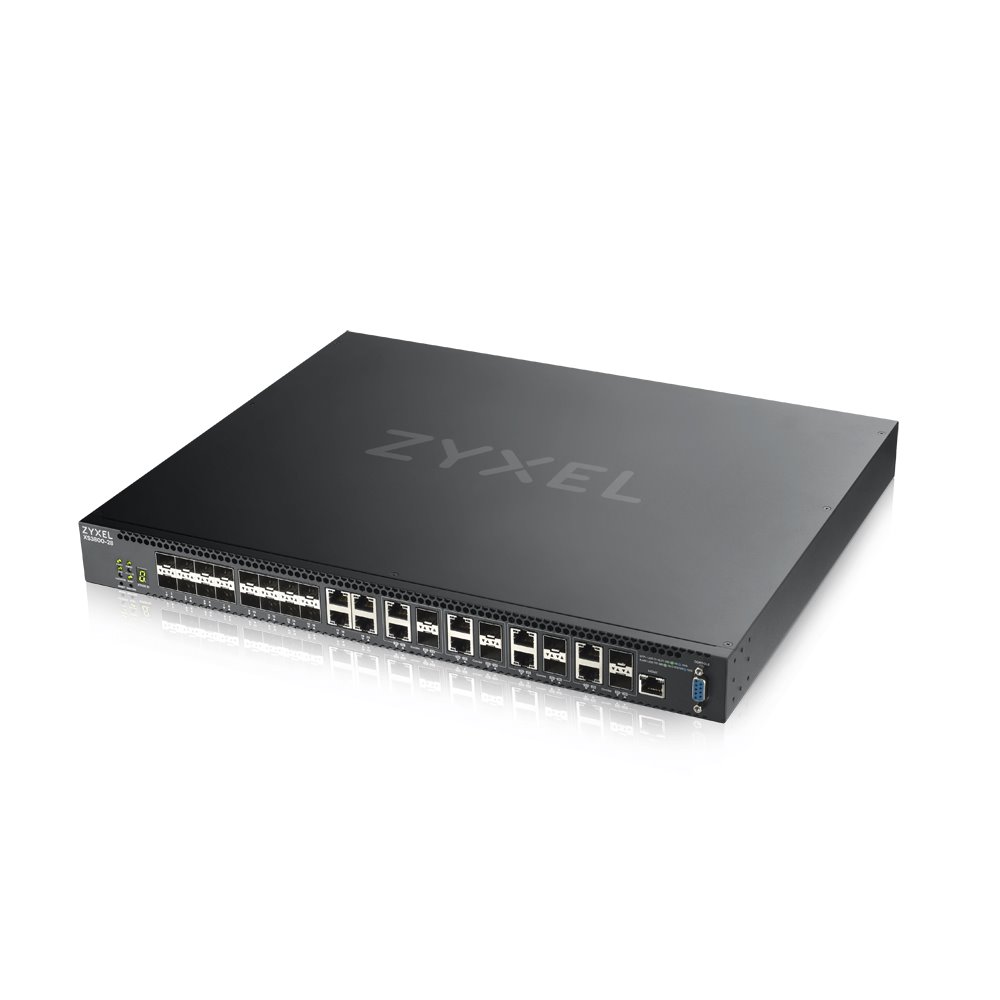

Zyxel XS3800-28, 28-port 10GbE L2+ Switch, MultiGig, 12x 10G Copper, 8x 10G dual pers., 8x 10G SFP+. Dual PSU

Zyxel XS3800-28, 28-port 10GbE L2+ Switch, MultiGig, 12x 10G Copper, 8x 10G dual pers., 8x 10G SFP+. Dual PSU

Flexible port design
XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.

Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.

XS3800-28
28-port 10GbE L2+ Managed Switch
Port Density
Total port count 28
100M/1G/2.5G/5G/10G Ethernet (RJ-45) 4
Multi-Gigabit combo (100M/1G/2.5G/5G/10G) RJ-45/(1G/10G) SFP+ 8
1G/10G SFP+ 16
Performance
Switching capacity (Gbps) 560
Forwarding rate (Mpps) 416
Packet buffer (byte) 4 MB
MAC address table 32 K
L3 forwarding table Max. 4 K IPv4 entries
Max. 2 K IPv6 entries
Routing table 1K
IP interface 128
Flash/RAM 64 MB/8 GB
Power
Input Dual power
100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 86.97
Physical Specifications
Dimensions (WxDxH)(mm/in.) 441 x 360 x 44/17.36 x 14.17 x 1.73
Weight (kg/lb.) 4.81/10.6
Included accessories
Power cord
Rack mounting kit
Environmental Specifications
Operating Temperature 0°C to 50°C/32°F to 122°F
Humidity 10% to 95% (non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 185°F
Humidity 10% to 95% (non-condensing)
MTBF (hr) 656,274.78
Heat dissipation (BTU/hr) 296.57
Acoustic noise @ 25°C (dBA) 58.2
