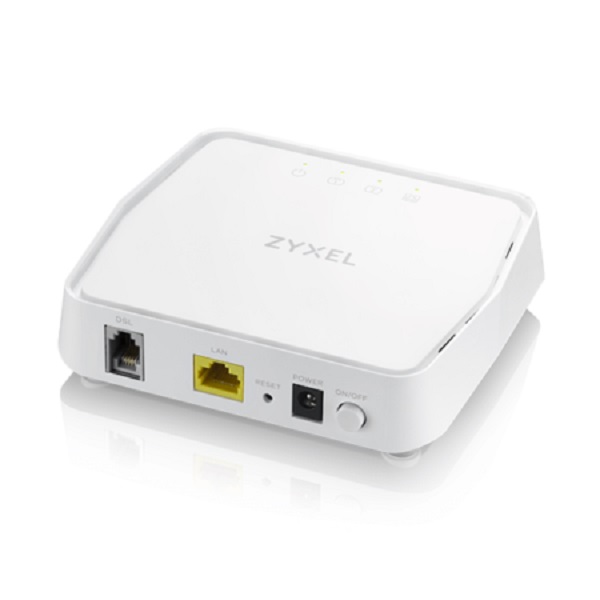

Zyxel VMG4005-B50A VDSL2 17a Bonding and 35b Single Line Bridge

Zyxel VMG4005-B50A VDSL2 17a Bonding and 35b

Výrobce
Zyxel
Part No.

VMG4005-B50A-EU01V1F

Kód

785960

VDSL2 profiles: 8a/b/c/d, 12a/b, 17a bonding, and 35b over POTS Gateway, 1GbE LAN, EU+UK STD version The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speed

DPH
21%
3 116 Kč s DPH
2 575 Kč bez DPH
Dostupnost
Dostupnost na pobočkách
Záruka
2 Roky

    Podrobnosti o produktu

    VDSL2 profiles: 8a/b/c/d, 12a/b, 17a bonding, and 35b over POTS Gateway, 1GbE LAN, EU+UK STD version

    The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.

    For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.

    VDSL2 17a Bonding technology allows ISPs to double the speed of their existing connection for customers
    VDSL2 supports super vectoring of up to profile 35b
    Metallic Line Testing (MELT) functionality, TR-286 standard compliant
    Auto provisioning and remote management through TR-069
    Zyxel OPAL firmware offers better flexibility and faster time-to-market
    Responsive Web design and intuitive user interface

    Bonded VDSL2 with Vector
    The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.

    Comprehensive Routing with IPv6, QoS and Firewall
    Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.

    TR-069 remote management
    With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.

    System Specifications
    Bridge Features

    IEEE 802.1D transparent bridge & basic spanning tree
    PPPoE (RFC 2516)
    PPPoA (RFC 2364)
    MAC Encapsulation Routing / IPoE
    DHCP client/server/relay with DHCP option 43/60/61
    IPv6: Dual Stack, 6RD
    QoS

    802.1Q VLAN tagging/un-tagging
    Support flexible traffic classification
    Support VLAN staking (QinQ)
    Networking

    LAN Setup
    VLAN Group
    Interface group
    Management

    Web/HTTP: 3 level log-in
    CLI (Command Line Interpreter) via SSH or Telnet
    Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
    Text based configuration (XML based)
    Configuration backup/update/restore default via Web
    Configurable access control for remote management (Interface and / port number)
    Trust Domain (support trust domain list)
    NTP (Internet Time automatically synchronize)
    DSL Forum TR-069, TR-098,TR111, TR181
    Rom-D support
    Session login. (for multiple user configuration with login privilege.)
    Configuration filter by login privileges
    Firewall & Security

    Generic packet filter
    DoS attack prevention
    Certificates
    System Monitor

    xDSL Statistics
    Traffic Status
    MAC Address Table
    ARP table
    System Log

    Hardware Specifications
    VDSL

    G.993.1 VDSL
    G.993.2 VDSL2, Band 997, 998, over POTS
    Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
    G.vector
    ADSL

    G.992.1 (G.dmt)
    G.992.2 (G.lite)
    ANSI T1.413 compliant
    G.992.3 (ADSL2)
    G.992.5 (ADSL2+)
    G.INP support

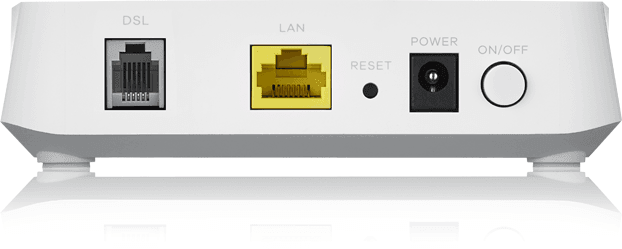

    LAN

    One 10/100/1000 Mbps Ethernet RJ-45 ports

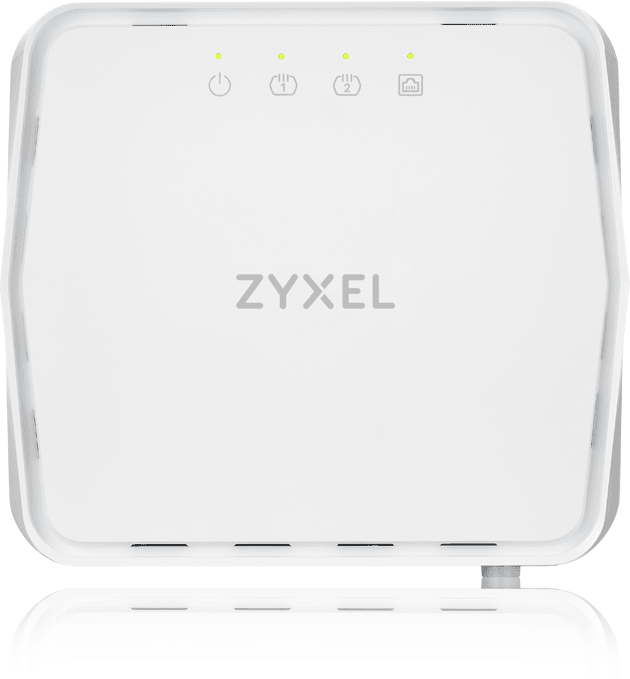

    LED indicators

    Power
    VDSL#1
    VDSL#2
    LAN
    Button

    Power On/Off
    Reset

    Power Consumption
    12 V DC/1 A

    Physical Specifications
    Item dimensions (WxDxH): 130 x 120 x 32 mm (5.11” x 4.72” x 1.25”)
    Item weight: 173 g (0.38 lb.)
    Packing dimensions (WxDxH): 245 x 142 x 42mm (9.64” x 5.59” x 1.65”)
    Packing weight: 380 g (0.84 lb.)

    Environmental Specifications
    Operating Environment

    Temperature: 0oC to 40oC (32oF to 104oF)
    Humidity: 10% to 90% (Non-Condensing)
    Storage Environment

    Temperature: -30oC to 70oC (-22oF to 158oF)
    Humidity: 10% to 95% (Non-Condensing)

    Certification
    CE

    Package Contents
    VDSL2 Bridge Modem
    Power adapter
    Quick start guide
    DoC & Safety warning
