Zyxel VMG3625-T50B Dual Band Wireless 35b AC/N VDSL2 Combo WAN Gigabit Gateway

The Zyxel VMG3625-T50B provides high-speed Internet access to meet the worldwide market requirements for triple-play services. Featuring the built-in 2x2 802.11ac WLAN function that relieves troublesome wirings, this model offers extreme coverage for great WiFi user experience. Moreover, the user-oriented design allows this model to meet every customer’s own style while providing powerful and practical functions.

AC1200, dual-band WiFi with 867 Mbps* 802.11ac 2x2 Wave 2 technology
TR-069 remote management (Data model: TR-098/TR-181)
USB 2.0 high throughput for file sharing
Excellent routing and QoS capability to prioritize applications as needed
NAT, firewall with SPI and DoS for better security
Stand-alone and wall mountable
VDSL2 supports super vectoring up to profile 35b

Benefits
Ultra speed for UHD IPTV service
The Zyxel VMG3625-T50B supports broadband access performance, which further enables operators to offer better UHD 4k IPTV services.

The triple-play powerhouse
The Zyxel VMG3625-T50B is built with sophisticated QoS and multicast traffic shaping features like IGMP v1/2/3 snooping and VLAN capabilities for premium video delivery services. To wireless IPTV operators, its built-in 2x2, 802.11ac chip is the top choice.

Carrier-class WiFi for seamless mobility
Rated as AC1200, the Zyxel VMG3625-T50B delivers speeds of up to 867 Mbps* over 5 GHz and 300 Mbps* over 2.4 GHz. For better user experience, four models offer dual-band, d WiFi with performance-boosting features such as Multi-User MIMO (MU-MIMO) and Beamforming for simultaneous, lag-free streaming and gaming experiences. In addition, its ability to create multiple WiFi networks with up to 4 SSIDs helps operators to easily create individual WLAN networks for video, data and guests.

TR-069 remote management with TR-181 issue-2 support
The Zyxel VMG3625-T50B supports TR-69 that simplifies remote configuration, upgrade and management and therefore improves cost effectiveness and customer satisfaction. Additional support to the latest TR-181 issue-2 data model also enhances service providers’ visibility on subscriber LAN networks for improved customer assistance.

Wireless Standard
802.11 b/g/n/ac 2.4 GHz, data rate 300 Mbps
802.11 a/n/ac 5 GHz, data rate 867 Mbps

Router/Bridge Features
IEEE 802.1D transparent bridge & basic spanning tree
PPPoE (RFC 2516)
PPPoA (RFC 2364)
MAC encapsulation routing/IPoE
Network Address Translation (NAT)
NAT virtual server (port forwarding)
DHCP client/server/relay with DHCP option 43/60/61/125
DNS proxy/dynamic DNS
Static/Policy route
IGMP v1, v2, v3
IPv4/IPv6
Wireless

Wireless Protected Setup (WPS)
WMM
WPA2/WPA2-PSK with TKIP & AES
Security type
Multi SSID: up to 4
MU-MIMO support

VLAN/QoS
802.1Q VLAN tagging/un-tagging
Support flexible traffic classification

Firewall & Security
Generic packet filter
DoS attack prevention
Parental control

USB
File sharing
3G back up with external 3G USB dongle

Management
Web/HTTP: 3 level log-in via SSH or Telnet
Firmware upgrade via Web/TFTP/FTP/TR-069 RPC method
Text based configuration
Configuration backup/update/restore default via Web
Configurable access control for remote management (interface and/port number)
DSL forum TR-069, TR-098
TR-111 and TR-181 i2
SNMP v1, v2
Rom-D support
UPnP port forwarding rules on page

VDSL
G.993.1 VDSL
G.993.2 VDSL2, Band 997, 998, Over POTS
Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
G.vector

ADSL
G.992.1 (G.dmt)
G.992.2 (G.lite)
ANSI T1.413 compliant
G.992.3 (ADSL2)
G.992.5 (ADSL2+)
G.INP support

Hardware Specifications
WAN: One 10/100/1000 Mbps
Ethernet port RJ-45

Wireless:
Two internal antennas (2.4 GHz)
Two internal antennas (5 GHz)

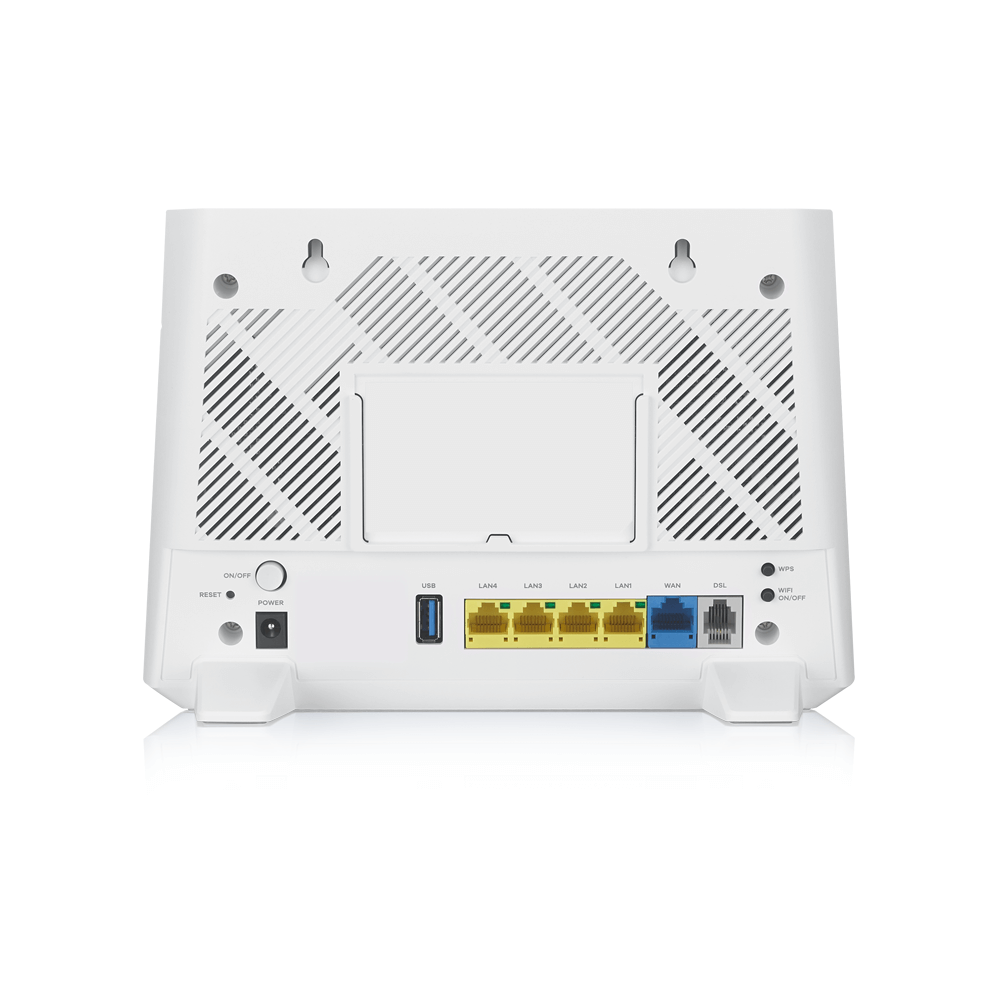

Interface Description
Ethernet: four 10/100/1000 Mbps
Ethernet ports RJ-45 (8P8C)
USB: one USB 2.0 host
DSL: one RJ-11

Button
One Power on/off button
One reset button
One WPS on/off button
One WLAN on/off button

Status LEDs indicators
Power/System
WAN
Internet
LAN
WLAN-2.4G/WPS
WLAN-5G/WPS

Power Consumption
12 V DC/ 1.5 A

Package Content
Wireless IAD
Power adapter
Ethernet cable
Quick start guide
Safety warning card
