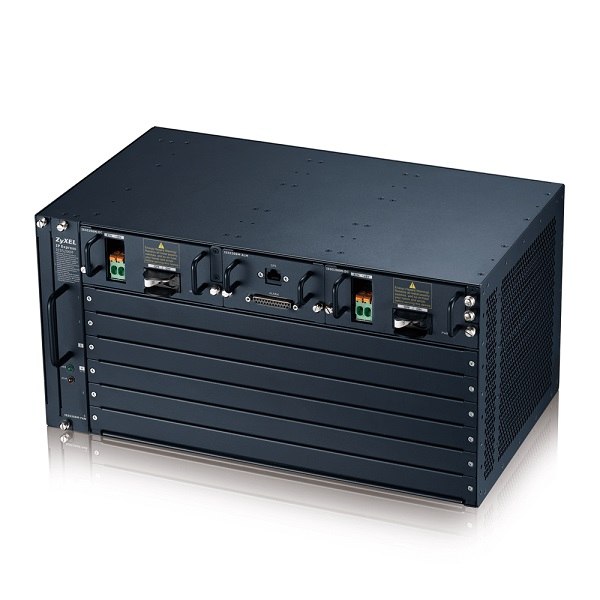

Zyxel IES5206M, 5U 6-SLOT chassis MSAN with one AC power module(100-240V AC input)& one DC power module (48V DC input),

Zyxel IES5206M, 5U 6-SLOT chassis MSAN with one

Výrobce
Zyxel
Part No.

IES5206M-ZZ01V2F

Kód

786203

DSL Compliant Comply G.993.2, G.993.5 (Vectoring), G.998.2 (PTM bonding), & G.998.4 (G.INP) Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a UPBO/DPBO Seamless rate adaptation Single End Loop Test (SELT)/Dual End Loop Test (DELT) On-line reconfiguration Impuls

    Podrobnosti o produktu

    DSL Compliant
    Comply G.993.2, G.993.5 (Vectoring), G.998.2 (PTM bonding), & G.998.4 (G.INP) Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
    UPBO/DPBO
    Seamless rate adaptation
    Single End Loop Test (SELT)/Dual End Loop Test (DELT)
    On-line reconfiguration
    Impulse Noise Monitoring (INM)
    Virtual noise
    ADSL2+ fallback
    ADSL G.992.1 (G.DMT)
    ADSL2 G.992.3 Annex M
    ADSL2+ G.992.5 Annex M
    GPON Compliant
    ITU-T 984.1
    ITU-T 984.2
    ITU-T 984.3
    ITU-T 984.4
    ITU-T 984.7
    Dynamic bandwidth allocation for upstream bandwidth dynamic adjustment
    Forward error correction
    GPON encapsulation method fragmentation
    GPON Type-B protection
    Rogue ONT detection
    Support up to 128 ONTs per PON port
    Topology Protocols
    ERPS
    Ring/Tree/Star topology
    STP/RSTP/MSTP
    Link aggregation
    Switch Function
    IEEE 802.1q VLAN
    IEEE 802.1ad VLAN stacking
    VLAN translation 1:1
    VLAN translation N:1
    Jumbo frame
    Mirroring by port
    Mirroring by VLAN
    Port isolation
    Multicast
    Multicast VLAN registration
    IGMPv2 & v3, snooping & proxy
    IGMP filter profile setting
    IGMP fast leave
    MLDv1 & MLDv2 snooping and proxy
    Security
    DHCP Relay agent
    PPPoE IA
    Static MAC
    Drop packet by ACL
    MAC limit per port
    MAC filtering source/destination MAC
    Storming control
    Anti MAC spoofing
    Prevent ARP spoofing
    QoS
    IEEE 802.1P
    Ingress port rate limit
    Egress port rate limit
    Scheduling algorithm SP, SP+WFQ, WFQ
    Limit packet rate by ACL
    OAM&P
    SNMP
    In band management/Out-of-band management
    CLI via console port/Telent/SSH
    Web GUI
    NetAtlas EMS

    Chassis—IES5206M
    6-slot rack mountable enclosure, 19" chassis
    4 slots for VDSL, GPON, and GE line cards
    2 slots for management and switch cards
    1 slot for Vectoring card
    2 DC power input modules for redundancy or one AC and one DC power input module for redundancy
    One fan and dust filter module
    One alarm module
    Management Switch Card—MSC1240XA
    Four 10G (SFP+) or four 1G uplink/subtending interfaces
    One mini-RJ11 console port
    One 10M/100M/1G out-of-band Mgmt interface
    Management Switch Card—MSC1280XA
    Eight 10G (SFP+) or eight 1G uplink/subtending interfaces
    One mini-RJ11 console port
    One 10M/100M/1G out-of-band Management interface
    Gigabit Ethernet Line Card—GLC1440X-55A
    Hot swappable 40-port active Gigabit Ethernet line card
    20 open slots for Gigabit or Fast Ethernet SFP (1000/100BASE-FX/BX/LX/EX)
    20 open slots for 40 ports Gigabit Ethernet C-SFP
    One mini-RJ11 console
    VDSL Line Cards—VLC1448X-51/VLC1448X-51S
    Hot swappable 48-port vectored VDSL2 line card over POTS
    Support G.993.5, G.998.4, G.993.2, G.994.1, G.997.1
    Maximum transmission rate up to 100 Mbps/50 Mbps
    One mini-RJ11 console port
    Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b and 17a
    Support U0 band, customer PSD, RFI notch, single latency in PTM mode and INP
    Support UPBO and DPBO, Reed Solomon and trellis coding
    Support ADSL fall back with ADSL/ADSL2/ADSL2+ CPE in Annex A, J, M, L modes
    GPON Line Card—OLC3416-42A
    16 GPON SFP open slots compatible with class B+ and class C+ SFP
    One mini-RJ11 console port
    Upstream signaling speed: 1.244 Gbps
    Downstream signaling speed: 2.488 Gbps

    Chassis—IES5206M
    Item dimensions (WxDxH): 442 x 275 x 222 mm
    Item weight: 13 kg
    Management Switch Card—MSC1240XA
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.2 kg
    Management Switch Card—MSC1280XA
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.2 kg
    VDSL Line Card—VLC1448X-51S
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.6 kg
    VDSL Line Card—VLC1448X-51
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.2 kg
    Gigabit Ethernet Line Card—GLC1440X-55A
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.1 kg
    GPON Line Card—OLC3416-42A
    Item dimensions (WxDxH): 391 x 258 x 25 mm
    Item weight: 1.1 kg

    MSC1240XA: 87 W
    MSC1280XA: 93 W
    VLC1448X-51: 73 W
    VLC1448X-51S: 73 W
    VEC1001X: 51 W
    GLC1440X-55A: 83 W
    OLC3416-42A: 69 W

    Operating Environment
    Temperature: -40°C to 65°C (-40°F to 149°F)
    Humidity: 10% to 95% (Non-condensing)
    Storage Environment
    Temperature: -40°C to 70°C (-40°F to 158°F)
    Humidity: 10% to 95% (Non-condensing)

    Safety:
    EN60950-1
    IEC60950-1
    EMC:
    EN55022 class A
    EN55024 class A
    ETSI 300 386 V1.6.1
    ITU-T K.20
