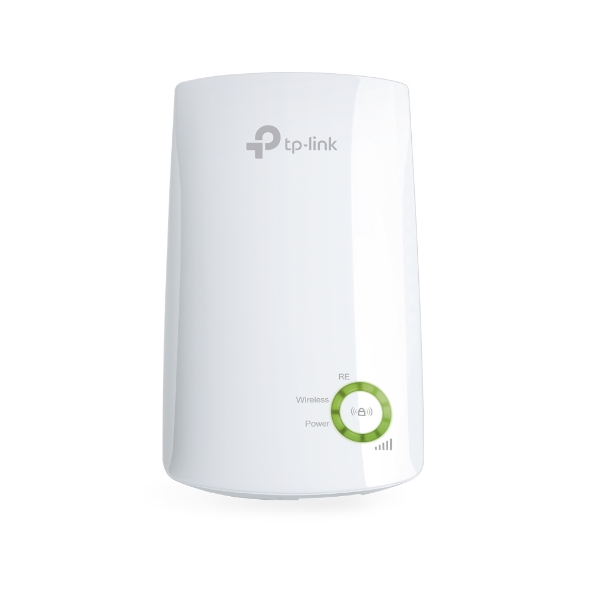

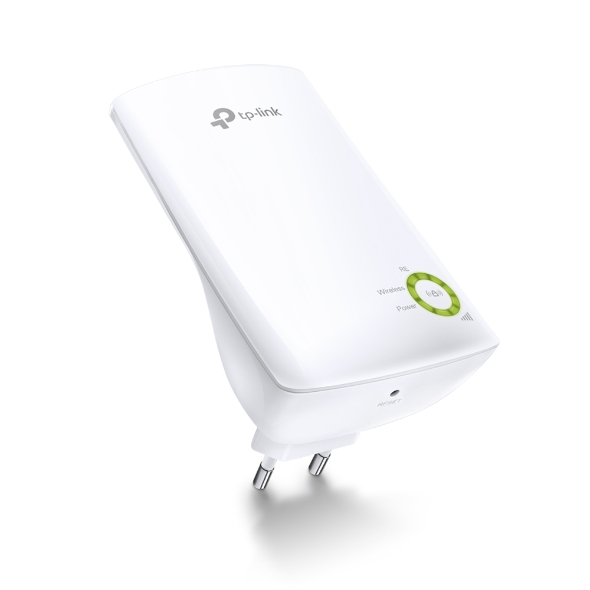

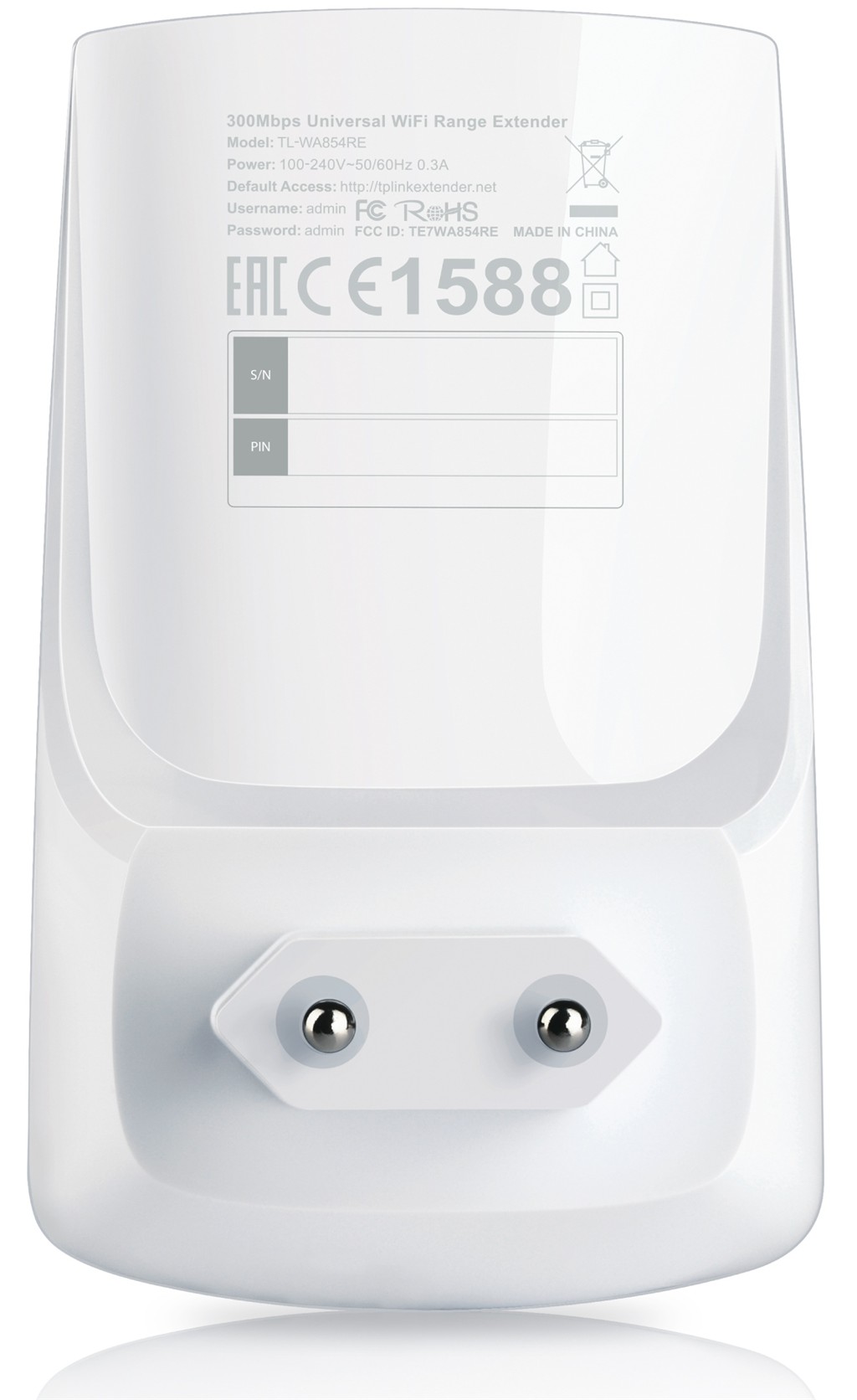

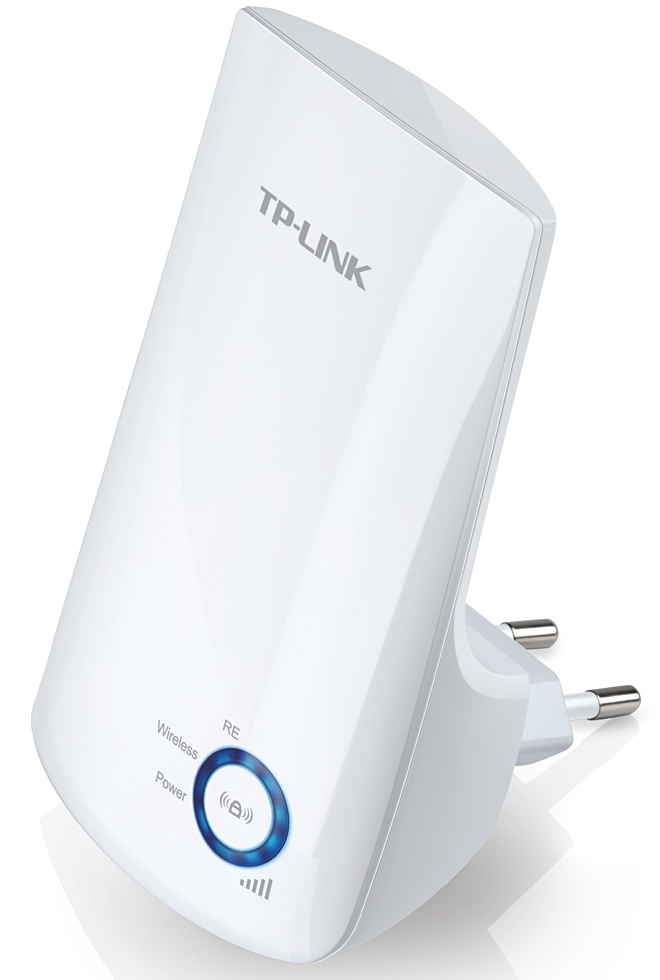

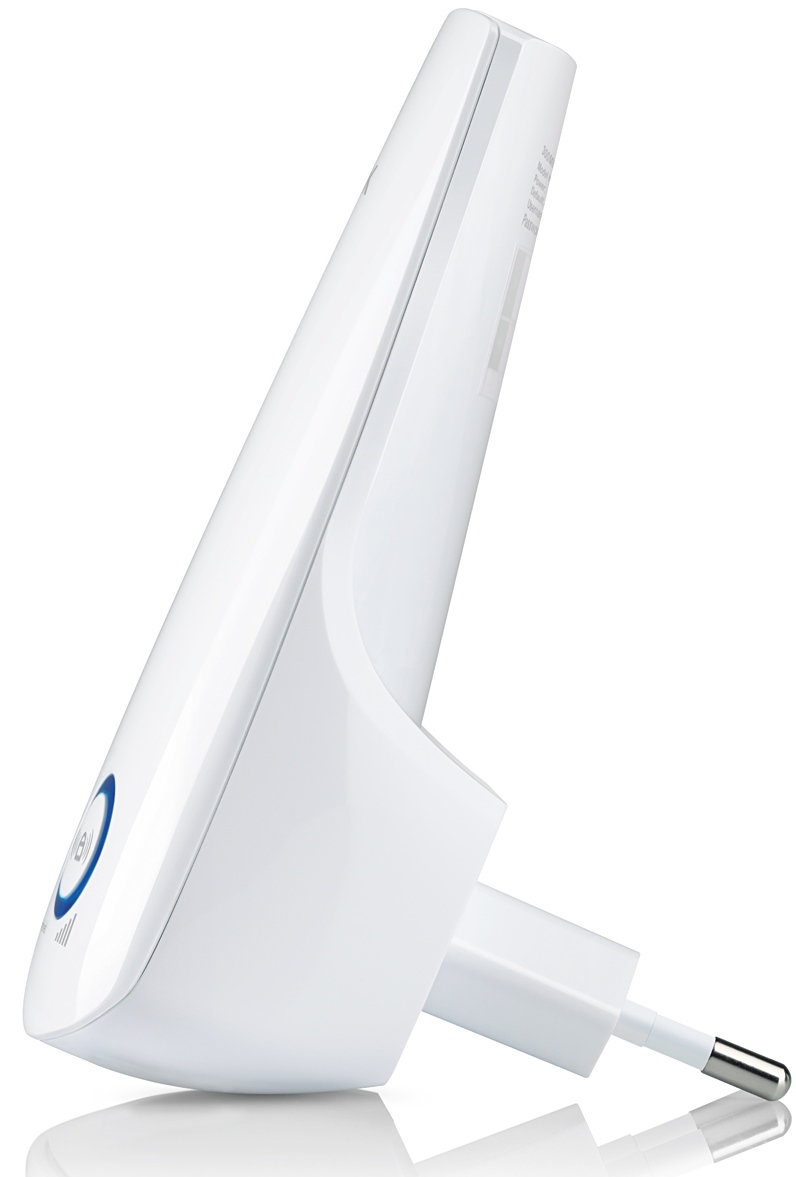

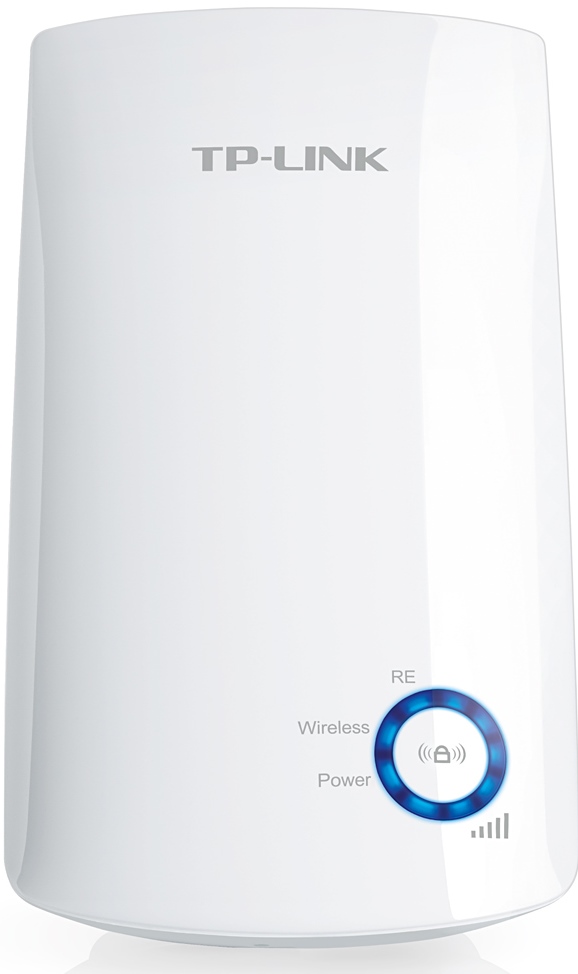

TP-Link TL-WA854RE 300Mbps Wifi N Range Extender

TP-Link TL-WA854RE 300Mbps Wifi N Range Extender OVERVIEW * Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly * Miniature size and wall-mounted design make it easy to deploy and move flexibly * Easily expand wireless coverage at a push of Range Extender button SPECIFICATIONS HARDWARE FEATURES Plug Type * EU, UK, US Button * RE (Range Extender) Button, Reset Button Wireless Standards * IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Antenna * 2x internal Dimensions ( W x D x H ) * 110.0 x 65.8 x 75.2mm Power Consumption * About 3W WIRELESS FEATURES Frequency * 2.4~2.4835GHz Signal Rate * 11n: Up to 300Mbps (dynamic) * 11g: Up to 54Mbps (dynamic) * 11b: Up to 11Mbps (dynamic) EIRP * < 20 dBm (EIRP) Reception Sensitivity * 270M: -68dBm@10% PER * 130M: -68dBm@10% PER * 108M: -68dBm@10% PER * 54M: -68dBm@10% PER * 11M: -85dBm@8% PER * 6M: -88dBm@10% PER * 1M: -90dBm@8% PER Wireless Modes * Range Extender Wireless Functions * WMM (Wi-Fi Multimedia) * Wireless MAC Address Filtering * Wireless Statistic * Domain Login Function Wireless Security * 64/128/152-bit WEP * WPA-PSK / WPA2-PSK OTHERS Certification * CE, RoHS Package Contents * 300Mbps Universal WiFi Range Extender TL-WA854RE * Resource CD * Quick Installation Guide System Requirements * Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux. Environment * Operating Temperature: 0°C~40°C * Storage Temperature: -40°C~70°C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing
