8portový stolní switch 10/100/1000 Mbit/s
TL-SG108

8 portů 10/100/1000 Mbit/s RJ45s automatickým vyjednáváním podporující Auto MDI/MDIX
Řízení toku IEEE 802.3x zajišťuje spolehlivý přenos dat
Kovový kryt, stolní nebo nástěnné provedení
Podpora funkce QoS (IEEE 802.1p)

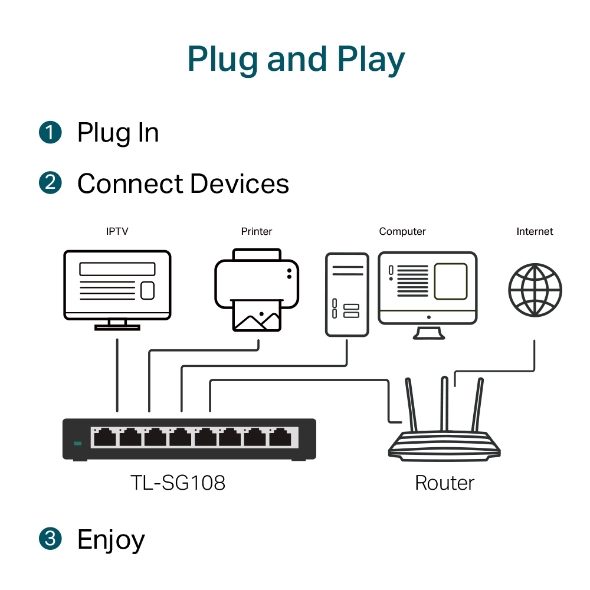

Zapojení typu Plug and Play bez nutnosti konfigurace


HARDWARE FEATURES



Standards and Protocols
IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p


Interface
8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

Power Consumption
Maximum: 3.97 (220V/50Hz)

External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)

Buffer Size
1.5Mb

LED Indicator
System Power
Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)


PERFORMANCE



Packet Forwarding Rate
11.9Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5Mb

Jumbo Frame
15KB


SOFTWARE FEATURES



Advanced Features
Green Technology,saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS1
IGMP Snooping1

Transfer Method
Store and Forward


OTHERS



Certification
CE, FCC ,RoHS

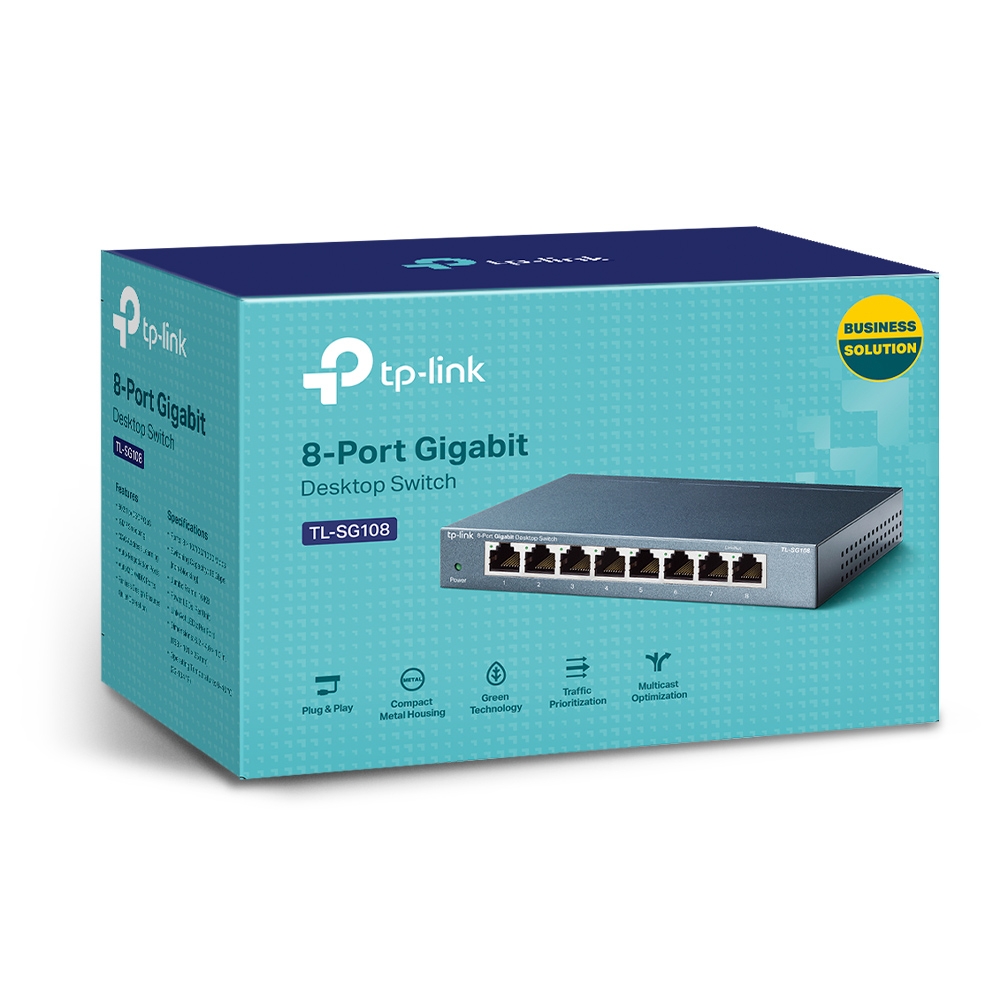

Package Contents
8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
