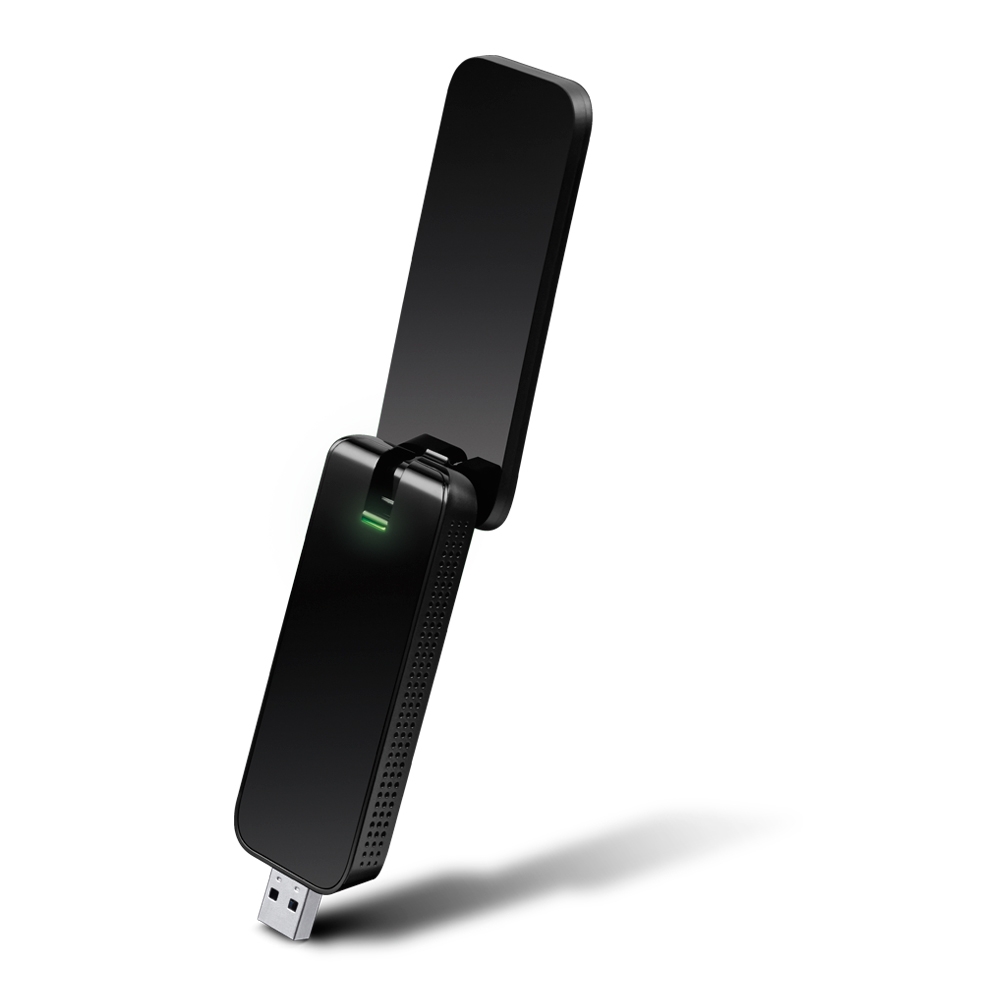

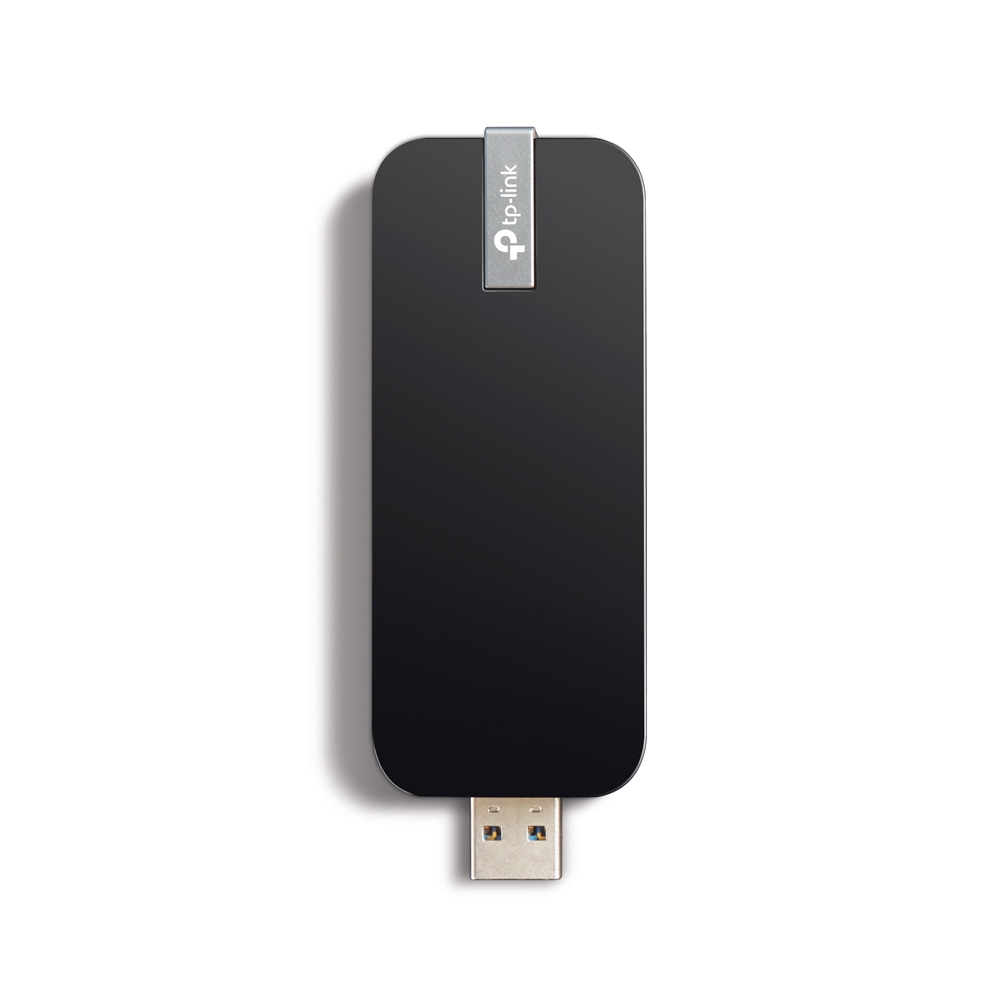

TP-Link Archer T4U AC1200 Wifi Dual Band USB Adapter OVERVIEW • Ultra-fast 1200 (867+300)Mbps wireless speed with 802.11ac • Dual Band connections for lag-free HD video streaming and gaming • SuperSpeed USB 3.0 port—Up to 10x faster than USB 2.0 • Easy wireless security encryption at a push of the WPS button • Equipped with a USB Extension Cable for flexible deployment SPECIFICATIONS HARDWARE FEATURES Interface • USB 3.0 Button • WPS button Dimensions (W X D X H) • 92.2×29×14.6mm Antenna Type • Omni Directional WIRELESS FEATURES Wireless Standards • IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency • 5GHz • 2.4GHz Signal Rate • 5GHz - 11ac: Up to 867Mbps(dynamic) - 11a: Up to 54Mbps(dynamic) • 2.4GHz - 11n: Up to 300Mbps(dynamic) - 11g: Up to 54Mbps(dynamic) - 11b: Up to 11Mbps(dynamic) EIRP • <20dBm (EIRP) Reception Sensitivity • 5GHz - 11a 6Mbps: -88dBm - 11a 54Mbps: -71dBm - 11ac HT20: -65dBm - 11ac HT40: -60dBm - 11ac HT80: -56dBm • 2.4GHz - 11b 11Mbps: -90dBm - 11g 54Mbps: -73dBm - 11n HT20: -71dBm - 11n HT40: -68dBm Wireless Modes • Ad-Hoc / Infrastructure mode Wireless Security • Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x Modulation Technology • DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM OTHERS Certification • CE, FCC, RoHS Package Contents • Wireless Adapter Archer T4U • Resource CD • Quick Installation Guide • USB Extension Cable System Requirements • Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) Environment • Operating Temperature: 0?~40? • Storage Temperature: -40?~70? • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
