TP-Link Archer AX90 Router, AX6600 Tri-Band Wi-Fi 6 Router

Rychlejší třípásmová Wi-Fi síť s AX6600 – 4 804 Mbit/s (5 GHz) + 1 201 Mbit/s (5 GHz) + 574 Mbit/s (2,4 GHz).
Široká škála připojení – 1 port 2,5 Gbit/s WAN/LAN + 1 port 1 Gbit/s WAN/LAN + 3 gigabitové porty LAN a dva porty USB zajišťují maximální flexibilitu a zvýšenou propustnost.
Maximální pokrytí signálem – osm antén s vysokým ziskem vybavených technologií Beamforming poskytuje velmi široké pokrytí.
Více připojených zařízení s menší latencí – technologie OFDMA a MU-MIMO směrují datové toky do několika zařízení současně.
TP-Link HomeShield – vylepšené zabezpečení na ochranu před nejnovějšími kybernetickými hrozbami
Výkonný procesor – 1,5GHz čtyřjádrový procesor zajišťuje rychlé přenosové rychlosti a hladký provoz při používání většího počtu zařízení a aplikací.
Dokonalejší zabezpečení – protokol WPA3 poskytuje robustnější šifrování Wi-Fi, a zvyšuje tak bezpečnost sítě.

Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)


WiFi Range 4 Bedroom Houses

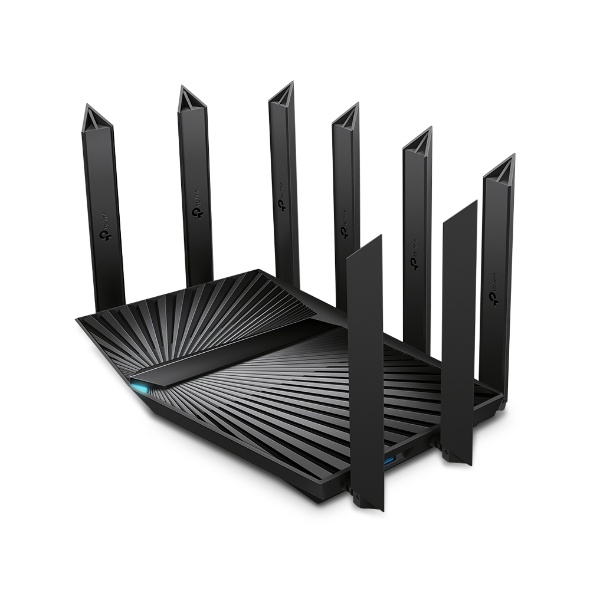

8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission



WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth



Working Modes Router Mode
Access Point Mode


HARDWARE
Processor 1.5 GHz Quad-Core CPU

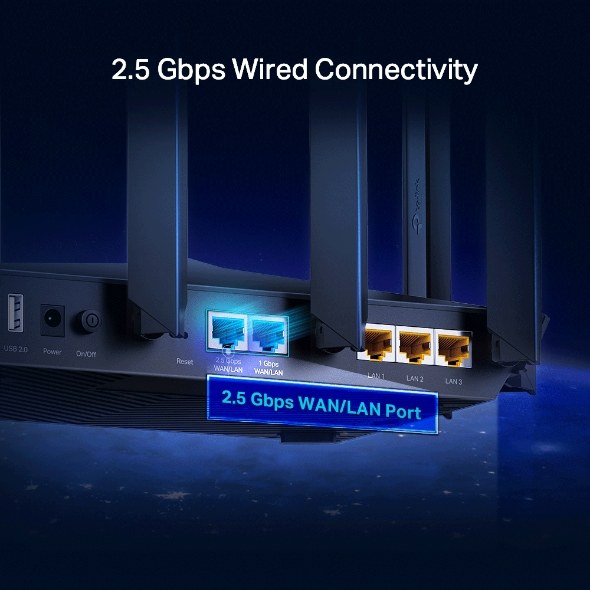

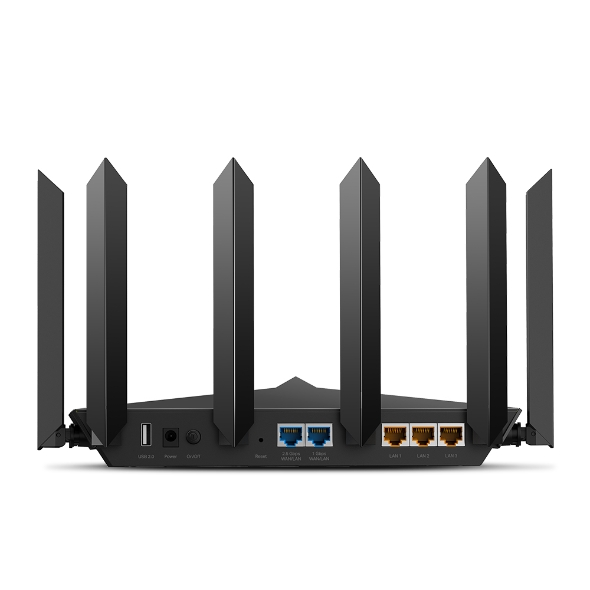

Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps WAN/LAN Port
3× 1 Gbps LAN Ports

USB Support 1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server


Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power 12 V  3.3 A


SECURITY

WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)


Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner


Guest Network 1× 5 GHz-1 Guest Network
1× 5 GHz-2 Guest Network
1× 2.4 GHz Guest Network


VPN Server OpenVPN
PPTP



SOFTWARE
Protocols IPv4
IPv6

Service Kits HomeShield

OneMesh OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

All OneMesh Products>



Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports


WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP


Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS


NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server


IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


DHCP Address Reservation
DHCP Client List
Server


DDNS TP-Link
NO-IP
DynDNS


Management Tether App
Webpage


PHYSICAL
Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)


Package Contents Wi-Fi Router Archer AX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide


OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


TEST DATA
WiFi Transmission Power CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }


WiFi Reception Sensitivity 2.4GHz:
11n HT20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS11:-62dBm
5GHz-1:
11ac VHT20 MCS0:-92dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
5GHz-1:
11ac VHT20 MCS0:-95dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
11ax HE160 MCS11:-53dBm
