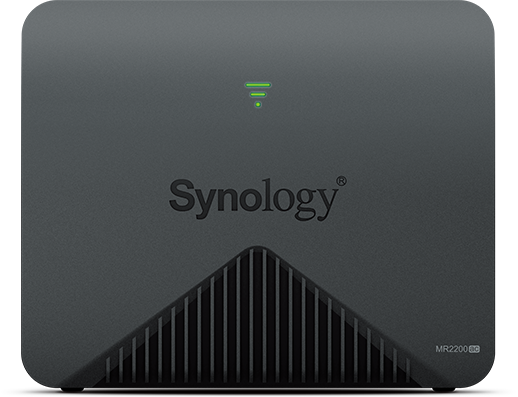

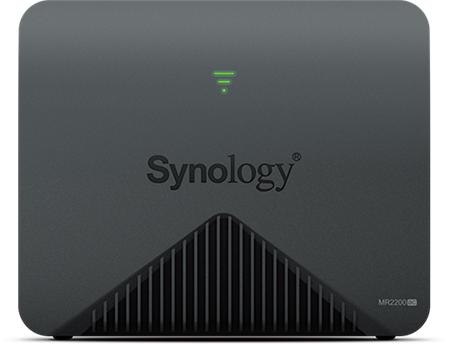

Synology Mesh Router MR2200ac

Coming with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.

Smart Wi-Fi all around
Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.

The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.

Whole-home Wi-Fi, easily managed
State-of-the-art technology doesn't have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward – and powerful.

Create a kid-friendly online world
We want kids to be safe online, even when we’re not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they’re exploring the world every day, and protect them until they’re ready.

Profile
Create a user profile to manage all devices someone owns at one time. You can also have one for all future devices connecting to your local network, one for guest Wi-Fi, one for IoT gadgets, and so on.

Security at the perimeter
It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems… things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.

Wi-Fi Certified WPA3 & Enhanced Open technology
Certified by the newest Wi-Fi security standards including WPA3-Personal, WPA3-Enterprise and Opportunistic Wireless Encryption (OWE), MR2200ac equips home, business, and open Wi-Fi networks with better defenses against snooping and other attacks.

Always up-to-date
Boasting a long track record of fast and continuous updates, SRM makes sure that your mesh network is ready to counter emerging threats.

Advanced functionality made accessible
For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.

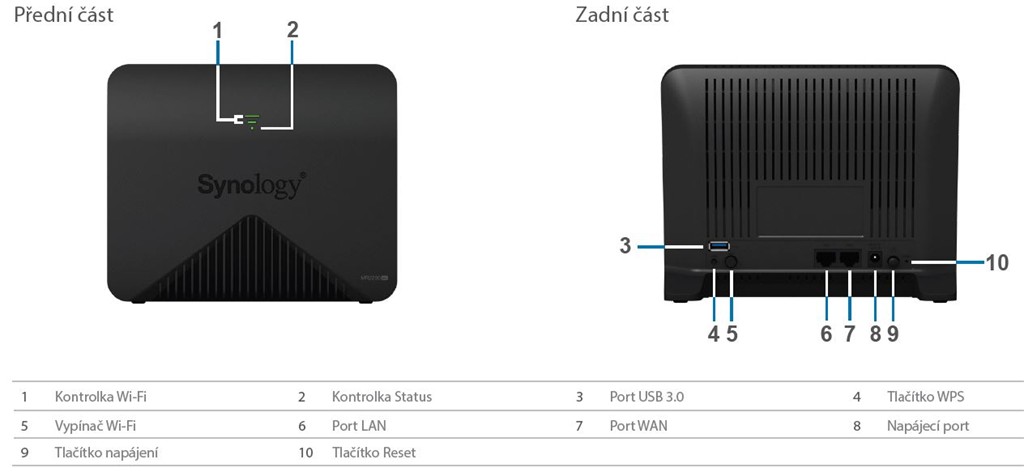

Hardware Specifications

CPU Quad core 717 MHz
Memory 256 MB DDR3
Antenna type 2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz)
LAN port Gigabit (RJ-45) x 1
WAN port Gigabit (RJ-45) x 1
External Ports USB 3.0 x 1 (5V, 0.9A power output)
Button and switch WPS, Power, Reset, Wi-Fi On/Off
Appearance Size (Height x Width x Depth)
154 mm x 199 mm x 65 mm
Weight 0.45 kg

Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification
FCC
CE
BSMI
VCCI Class B
RCM
KC
iDA
TELEC
JATE
IC

Wi-Fi Certification
CE
FCC
NCC
RCM
iDA
TELEC
KC
IC

Warranty
2 Years

Others
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 12.95 W (Access)  5.21 W (Idle)

Wireless

IEEE 802.11ac
IEEE 802.11a/b/g/n/ac
Simultaneous tri-band Wi-Fi
5GHz-1: 867Mbps
5GHz-2: 867Mbps
2.4GHz: 400Mbps

IEEE 802.11ac wave 2 MU-MIMO

Wi-Fi Encryption WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)

Wi-Fi MAC address filter

Maximum MAC filters 64

Seamless roaming 802.11k/v/r standard support

Beamforming

DFS

Schedulable Wi-Fi

Guest Network

Guest Portal

Customized page style

Connection time limit

Password Rotation

WPS 2.0 (Wi-Fi Protected Setup 2.0)

3G/4G Dongle & Tethering (Learn more)

Maximum connected devices 90

Wi-Fi Point

Primary Wi-Fi Point

Network

Internet connection Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)

3G/4G LTE dongle

Android tethering

Operating mode
Wireless Router
Wireless AP

Port forwarding Setup via manual management or UPnP

Maximum port forwarding rules 64
Maximum UPnP rules 64

Port triggering

Maximum port triggering rules 32
Minimum port triggering timeout 30s
Maximum port triggering timeout 3600s

DMZ

IPv6 IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
DHCP Server/client mode, client list, MAC address reservation
Maximum DHCP reservations 500

LAN/WLAN IGMP snooping

VPN
VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
VPN client (PPTP, OpenVPN, L2TP/IPSec)
VPN Pass-through (PPTP, IPSec, L2TP)

Policy route, Static route, Network Address Translation (NAT), PPPoE relay

Maximum IPv4 static routes 100
Maximum IPv6 static routes 100

Diagnosis tools

Ping
Traceroute

Safe Access

Parental Control

User Profile 15
Network Profile 2
Customized Internet schedule
Time Quota

IPv4/IPv6 DNS-based web filter
Schedule
Database
Request to unblock

Customized allow/block list
Maximum blocked URLs: 100
Maximum allowed URLs: 100

Pause Internet

Reward

Log

Report

Security

Safe Search Bing, Google, YouTube
Threat Intelligence Database support in IPv4 & IPv6
Google Safe Browsing support in IPv4 & IPv6
Database auto update Threat Intelligence Database, Google Safe Browsing , DNS-based web filter

Traffic Control
Internet ban, device speed & priority

Application layer (L7) quality of service (QoS)

Maximum device rules 64
Maximum application rules per device 32

Traffic Monitor

Live view

Historical statistics Daily, Weekly, Monthly, Annual

Website history

Application Detection

Traffic Report

Country auto update

Schedulable

Traffic analysis period Daily, Weekly, Monthly, Annual
Export formats .CSV, .HTML

VPN Plus Server
VPN Plus Server Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP

Maximum Client VPN Access License 10

Site-to-Site VPN

Maximum Site-to-Site VPN Tunnels 4
Remote Desktop (RDP + VNC) 3

Connection List

Log

Report

Package Center

Cloud Station Server Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
Maximum Concurrent File Transfers 64
Note Cloud Station ShareSync is not supported

DNS Server Helps users find and translate domain names into IP addresses
Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule
