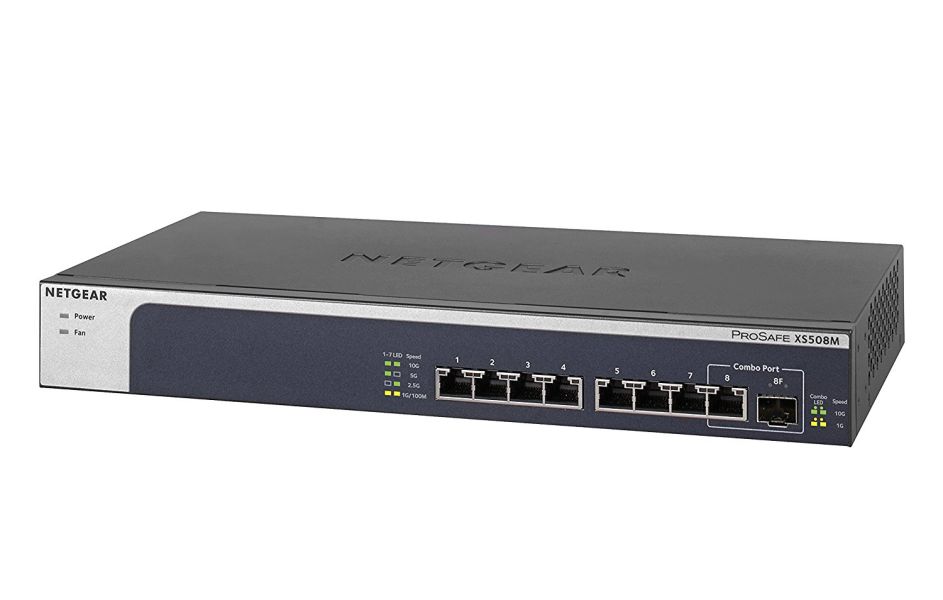

Product Number : XS508M

100M/1G/2.5G/5G/10G RJ-45 copper ports:     7

10G SFP+ ports:     1 x 10G/1G SFP+ and Copper (combo)

Form Factor:     Desktop/Rackmount

Packet buffer memory:     128KB

Bandwidth:     100Gbps

MAC Address database size:     2 Kg

Number of priority queues:     8

Jumbo frame support:     Up to 9K packet size

Fan(s):     1 Low-Noise Active Fan

Jumbo frame support:     Up to 9K packets

IEEE 802.3az (Energy Efficient Ethernet):     Yes

Max power consumption (Watts):     39W

LEDs:     Power,Fan, Speed, Link/Activity

Acoustic noise level @ 25° C (dBA):     28.8dB

Operating temperature:     0° to 40° C

MTBF (@ 25° C):     22.5dBA

Electromagnetic compliance (A or B):     B

Dimensions (W x D x H):     328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)

Weight:     1.49kg
