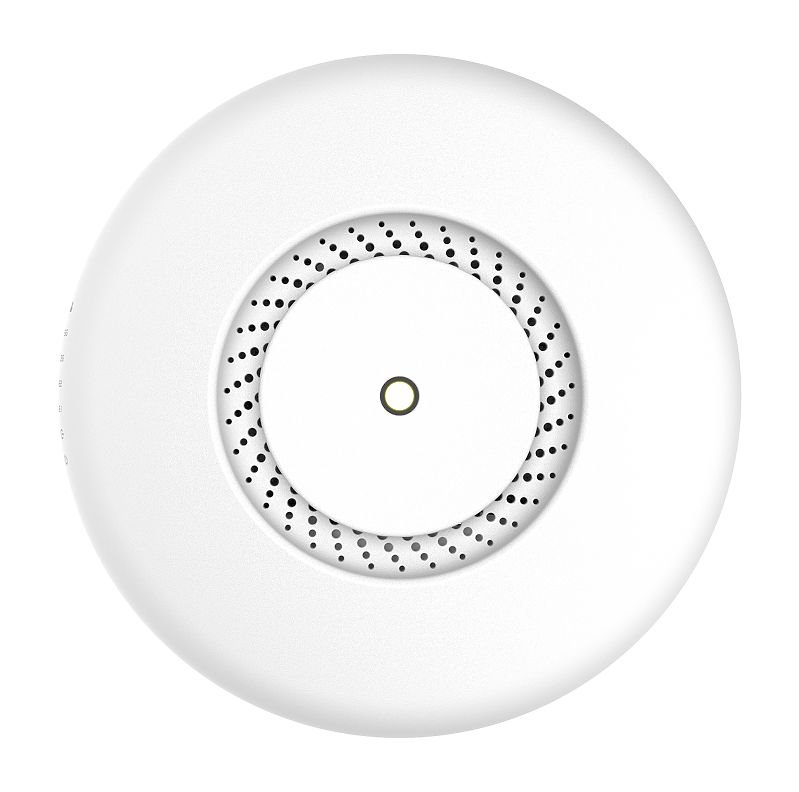

MikroTik RouterBOARD RbcAPGi-5acD2nD, cAP ac

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

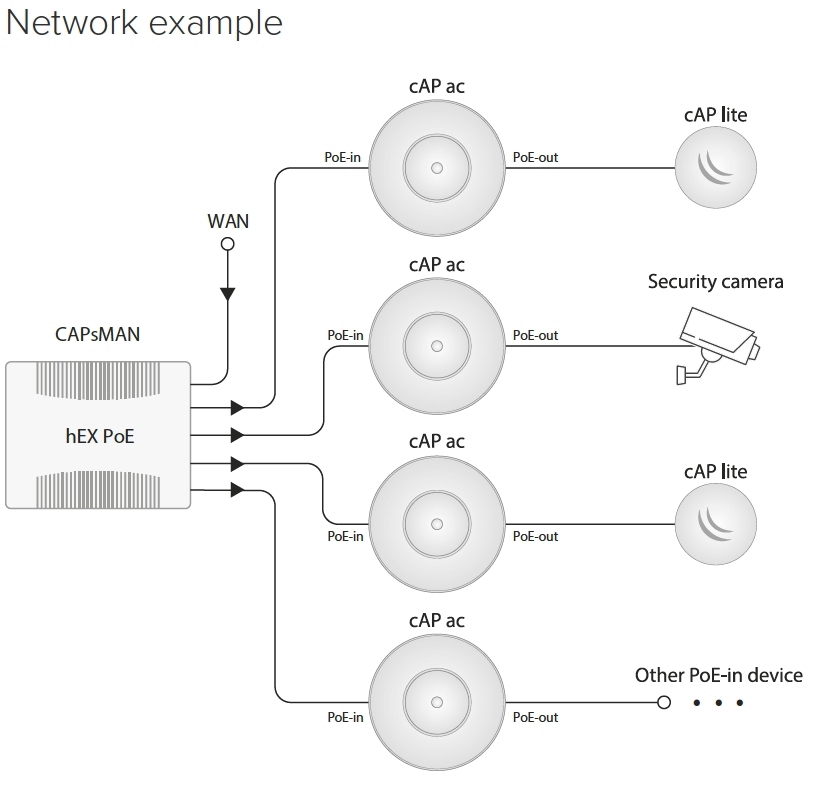

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port.

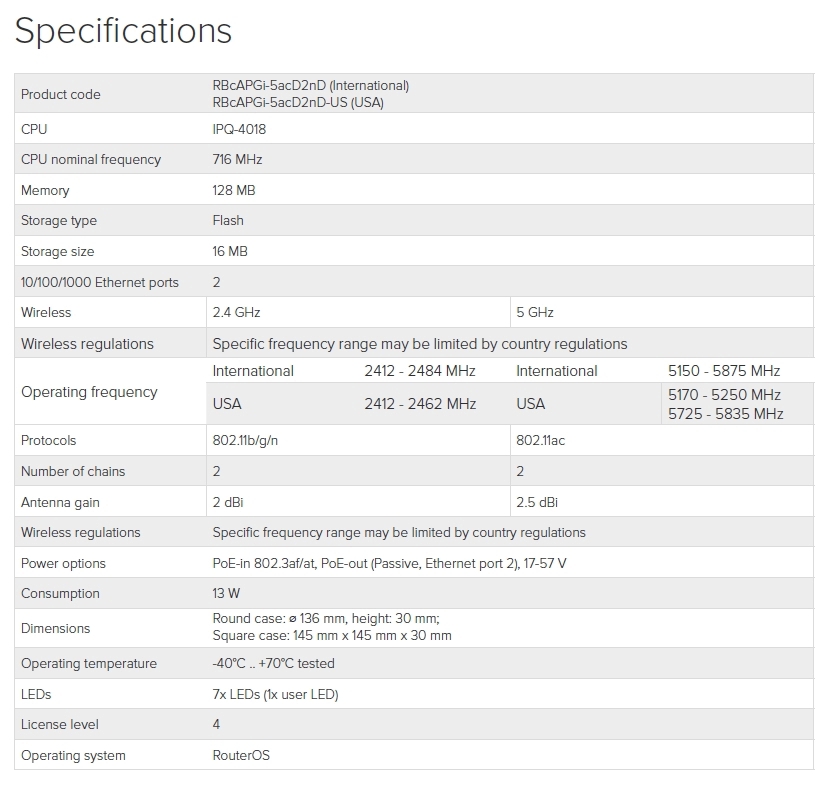

Specifications
Details
Product code RBcAPGi-5acD2nD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Round case: ? 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40 to 50° C
Suggested price $69.00
Powering
Details
Max Power consumption 13W
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 17-57 V
Number of DC inputs 1 (PoE-IN)
Wireless
Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Ethernet
Details
10/100/1000 Ethernet ports 2
