Lenovo ThinkSystem External Diagnostics Handset - SR665

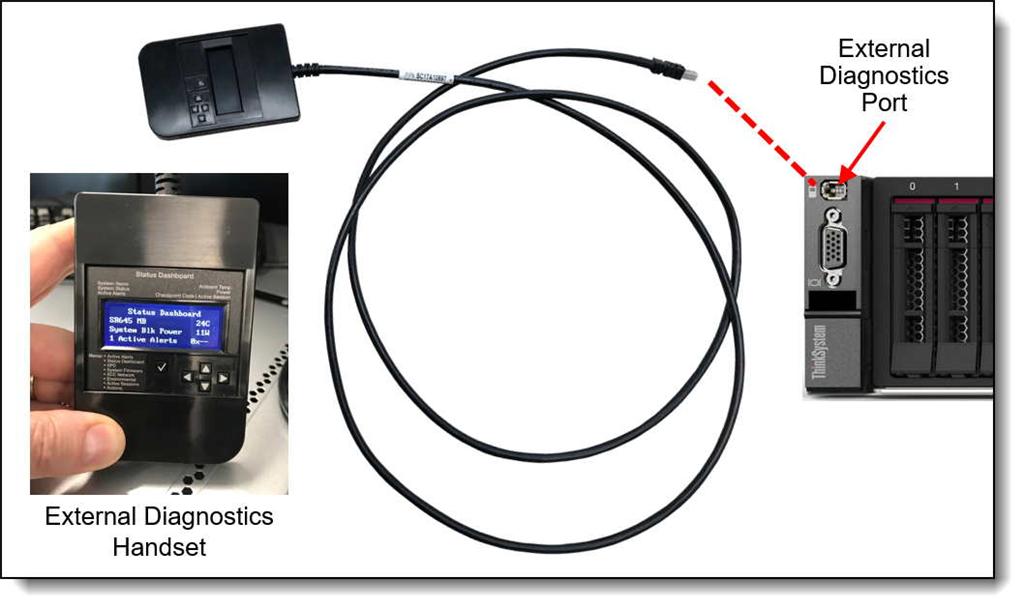

The SR665 also has a port to connect an External Diagnostics Handset as shown in the following figure. The External Diagnostics Handset has the same functions as the Integrated Diagnostics Panel but has the advantages of not consuming space on the front of the server plus it can be shared amongst many servers in your data center. The handset has a magnet on the back of it to allow you toeasily mount it on a convenient place on any rack cabinet.

The Integrated Diagnostics Panel allows quick access to system status, firmware, network, and health information. The LCD display on the panel and the function buttons give you access to the following information:

   Active alerts
   Status Dashboard
   System VPD: machine type & mode, serial number, UUID string
   System firmware levels: UEFI and XCC firmware
   XCC network information: hostname, MAC address, IP address, DNS addresses
   Environmental data: Ambient temperature, CPU temperature, AC input voltage, estimated power consumption
   Active XCC sessions
   System reset action
