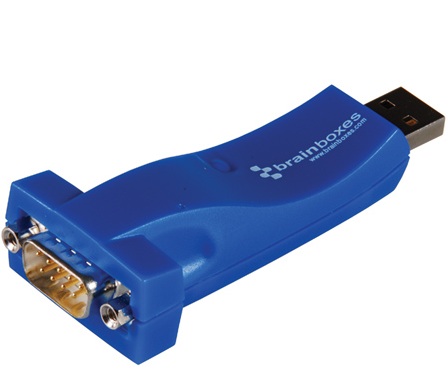

Lenovo Serial adapter Brainboxes US-101 USB - seriový port RS232/DB9
Výrobce
Lenovo
Part No.
78Y2361
Kód
780561
Port Ports1 ProtocolRS232 ConnectorDB9 Connector - 9 Pin Male Tx FIFO Size128 Rx FIFO Size256 Operating DistanceEIA - RS232 Standard CableUSB extender cable (0.25 metre ~ 1ft) Port Settings Max Baud Rate921,600 Data Bits7 or 8 ParityOdd, Even,
Koncová cena bez DPH
1 346 Kč
DPH
21%
1 629 Kč s DPH
1 346 Kč bez DPH
Dostupnost
Záruka
12 Měsíce
Zařazení produktu
Související dokumenty
Podrobnosti o produktu
Ports1
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
Tx FIFO Size128
Rx FIFO Size256
Operating DistanceEIA - RS232 Standard
CableUSB extender cable (0.25 metre ~ 1ft)
Port Settings
Max Baud Rate921,600
Data Bits7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1 or 2
Tx/Rx ModesPoint to Point
General
PCB Layers4
Industrial StandardNo
Power Consumption 40mA @ 5V
Product Weight 0.024 kg, 0.05 pounds
Product Dimensions 89(l) x 35(w) x 20(h) mm
Podporované OS : Windows XP, Vista, 7, Server 2008, Server 2003, Linux, Mac OS X
