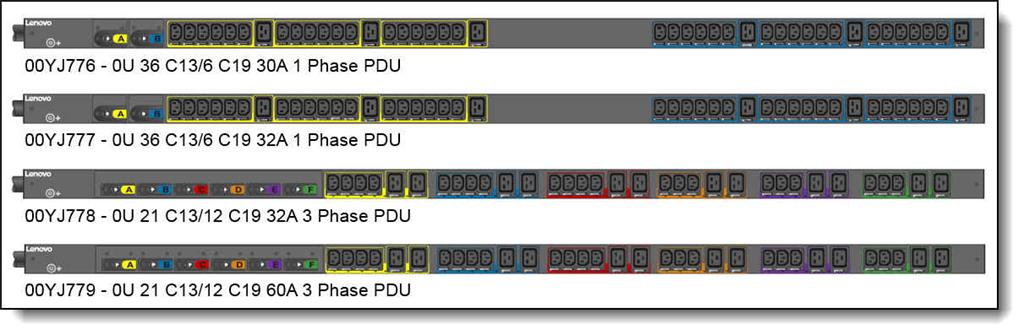

Lenovo 0U 36 C13/6 C19 32A 1 Phase PDU

The Lenovo zero-U (0U) Basic power distribution units (PDUs) are the ideal solutions when you need flexible, reliable, easy-to-deploy power distribution with branch circuit protection to minimize downtime. These rack-dense units distribute power to up to 42 outlets. The 0U PDUs are designed to be installed vertically in the rear channel or side pockets of a Lenovo rack, thereby not consuming any horizontal rack space that otherwise be used by servers, storage and network switches (hence the term 0U).

The 0U Basic PDUs have the following common features:
•These PDUs are Eaton-supplied basic PDUs. These are called basic PDUs as they are the simplest and most cost-effective power distribution available.
•0U rack-dense design with attached input cable, primary outlets, and breakers on one face to improve usability and cable management
•Hardware included to mount in side pocket of rack
•Easily accessible and resettable UL489, color coded circuit breakers to aid in set up, configuration and maintenance in high availability environments.
•Electronic over-current protection
•High capacity up to 23 kW (model dependent)
•The use of PDUs simplifies cable management and increases accessibility. In addition, the button-mount design of these 0U Basic PDUs helps simplify deployment by providing rear and/or side mounting in 9307, 9308, 9360, 9361 and 9363 model rack cabinets making installation of these PDUs extremely versatile. For a complete list of supported rack cabinets, see the Supported rack cabinets section.


Lenovo Press - https://lenovopress.com/lp0576-lenovo-0u-basic-pdus
