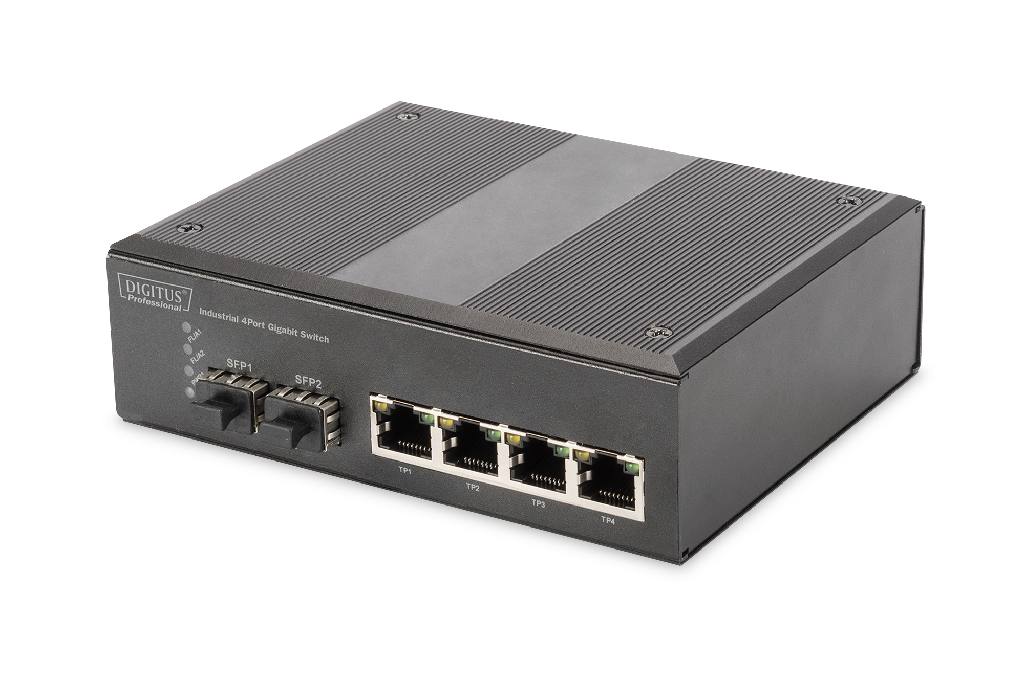

DIGITUS Professional Industrial 4-Port Gigabit Switch with 2 x SFP uplink

DIGITUS Industrial Gigabit Ethernet Switch 4 x 10/100/1000Base-TX Ethernet Ports, 2 x SFP, -40oC ~ 85oC

Industrial 4-Port Gigabit Switch with 2 x SFP uplink

Industrial Gigabit Ethernet Switch 4 x 10/100/1000Base-TX Ethernet Ports, 2 x SFP, -40oC ~ 85oC

Standard / Din Rail mounting dual purpose

Industrial 4-Port Gigabit Switch with 2 x SFP uplink
4 x 10/100/1000Base-TX Ethernet Ports
2 x 1000Base-X SFP Uplink Ports
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity and SFP Uplink Ports, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Technical details
4 x 10/100/1000Base-TX Ethernet Ports
2 x 1000Base-X SFP Uplink Ports
Automatic cable detection - Auto MDI / MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
Compact, robust metal housing
Excellent short circuit protection
Lightning and overvoltage protection
DIN rail (top hat rail) and wall mounting possible
Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
Extended operating temperature range, -40 °C ~ +85 °C
Removable terminal connection
Protection class: IP40
Package content
Industrial 4-Port Gigabit Switch with 2 x SFP uplink
Quick start guide
