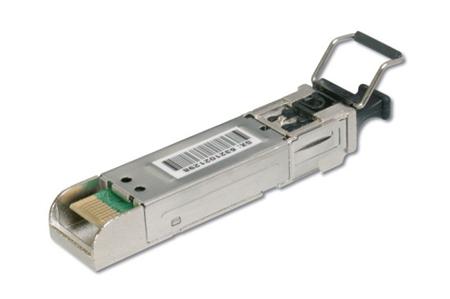

DIGITUS 1.25 Gbps SFP Module, Up to 80km, Singlemode, LC Duplex Connector 1000Base-LX, 1550nm

DIGITUS 1.25 Gbps SFP Module, Up to 80km, Singlemode, LC Duplex Connector 1000Base-LX, 1550nm

The Plug and Play Fiber Connection

mini GBIC SFP (Small Form Factor Pluggable) Module
Bidirectional WDM Module - Only one fiber is needed
High quality and excellent reliability
1.25 Gbps Maximum Data Rate
Compliant to IEEE 802.3z Gigabit Standard
Class 1 Laser product compliant with EN 60825-1
Easy Plug and Play Installation
MSA (Multi Source Agreement) compliant
Hot pluggable
Connector: 1x LC Simplex
Wavelength: Tx 1310nm / Rx 1550nm
Transmission Power: Minimum -5 dBm, Maximum 0 dBm
Sensitivity Receiving Power: Minimum -24 dBm
For a Distance of up to 20km
Suitable for 09/125µm Singlemode Fiber Cables
Safe fast-locking mechanism
3.3V Power Supply
Suitable Module for Opposite Side: DN-81004

Package Content
SFP Module

Výrobek je dodáván s manuálem pouze v anglickém jazyce.
