Dell Pro Dock WD25 - 130W

Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.

Technical Information
Connectivity Technology Wired
Number of Displays Supported 4

Video
Video Resolution
DP1.4 without Display Stream Compression
Up to:
   4 x HD (3840x2160) @ 60Hz
   3 x FHD (1920x1080) @ 60Hz
   2 x QHD (2560x1440) @ 60Hz
   1 x 4K (3840 x 2160) @ 60Hz

DP1.4 with Display Stream Compression
   4 x WQHD (3440 x 1440) @ 60Hz
   3 x WQHD (3440 x 1440) @ 60Hz
   2 x 5K (5120 x 2160) @ 60Hz
   1 x 6K (6144 x 3456) @ 60Hz

Power Description
Maximum Power Supply Wattage  130W

Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE

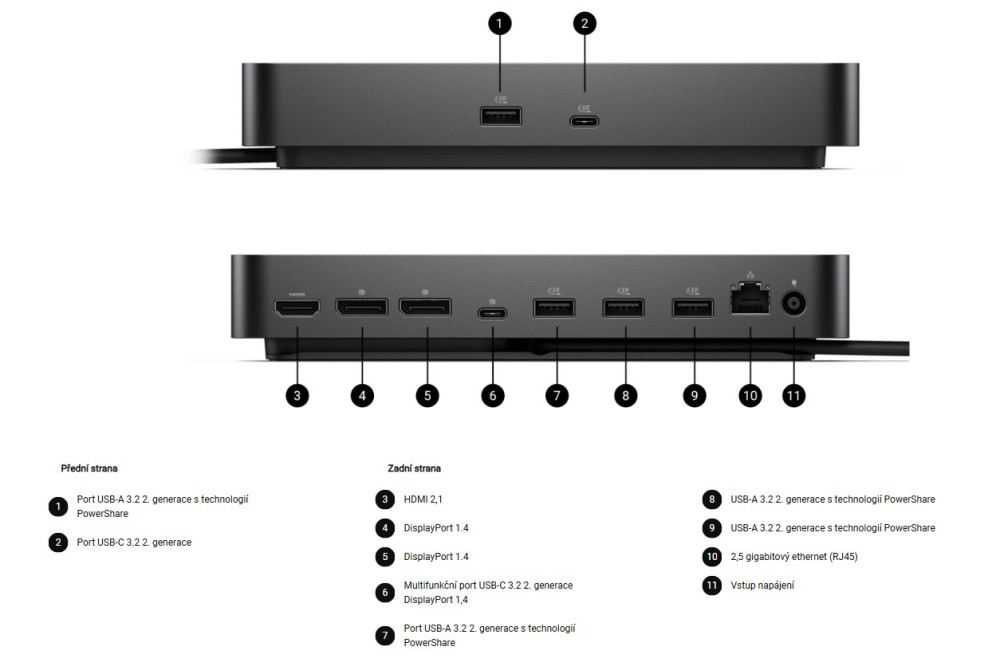

Interfaces/Ports
Interfaces
Video interfaces
   2 x DP1.4
   1 x HDMI 2.1
   1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)
   4 x USB-A 3.2 Gen 2 (10 Gbps)
   1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)
   4 x USB-A 3.2 Gen 2 (4.5W each)
   1 x USB-C 3.2 Gen 2 (15W)
   1 x USB-C Multi-function DisplayPort (7.5W)
   All deliver power with or without PC

USB Power Delivery 96W

Software
Operating System Supported

   Windows 10
   Windows 11
   Ubuntu
   Red Hat Enterprise Linux
   ChromeOS
   macOS

Physical Characteristics
Height 205mm
Width 90mm
Depth 35.25mm
Weight (Approximate) 550 g
