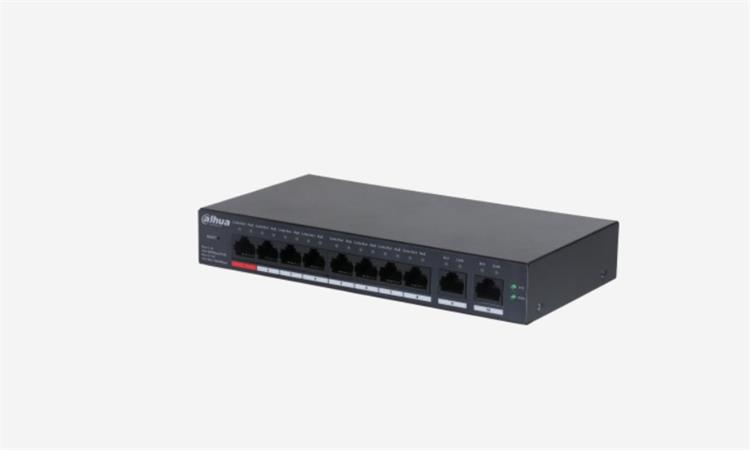

Dahua Switch DH-CS4010-8ET2GT-11010-Port Cloud Managed Desktop Switch with 8-Port PoE

CS4010-8ET2GT-110

10-Port Cloud Managed Desktop Switch with 8-Port PoE

> 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports.

> 110 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.

> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.

> Wide operating temperature ranging from –10 °C to 55 °C.

> Supports VLAN and loop protection.

> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.

> Easy config to auto detect and set up network and security systems.

Device Type Switch
Layer Layer 2
Switching Capacity 5.6 Gbps
Packet Forwarding Rate 4.17 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External Power Adapter(54 V, 2.22 A)
Included Power Adapter Yes
Power Consumption Idling: 5.7 W Full load: 115 W
Statics Protection Air discharge: 8 kV Contact discharge: 6 kV
Lightning Protection Common mode: 6 kV Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.09 kg (2.03 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoEPoE Yes
PoE Power Port 3-8?30 W, port 1-2?90 W, total?110 W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
PoE Pin Assignment Port 1-2:1,2,4,5(V+),3,6,7,8(V-) Port 3-8:1,2,(V+),3,6,(V-)
Long Distance PoE Transmission Yes
PoE Watchdog Yes
GeneralPacking List 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Adapter 1 × Power Cord
HardwareModular Switch/Fixed Switch Fixed
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Ethernet Port 8
Reset Button 1
PerformanceRecommended Video Channels 8-ch 4-MP IPC
MTBF 3,359,638 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Byte
MAC Table Size 8K
Total Static MAC Addresses 16
Flash 4 MByte
RAM 64 KB
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az
VLAN Number 32
Traffic Limit Granularity 1 Mbps
FeatureLLDP Yes
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention
Mirror Local Port Mirroring N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management Cloud Management Logs Fault Alarm
