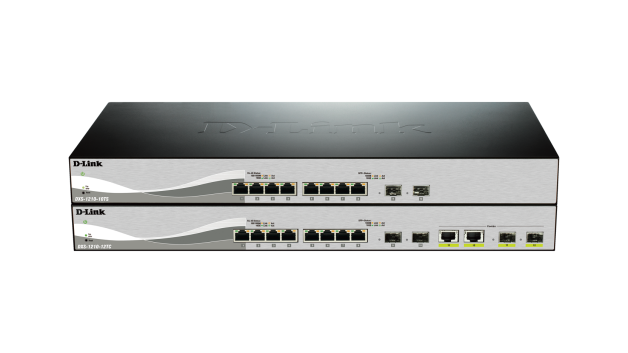

D-Link DXS-1210-12TC 12 Port switch including 8x10G ports & 4xSFP

General

Interfaces

   DXS-1210-12TC
       8-port 10GBASE-T
       2-port SFP+
       2-port 10GBASE-T/SFP+ combo design

Port Standard & Functions

   IEEE 802.3u 100BASE-TX Fast Ethernet
   IEEE 802.3ab 1000BASE-T Gigabit Ethernet
   IEEE 802.3az compliance
   IEEE 802.3an 10GBASE-T 10GbE over copper
   IEEE 802.3ae 10GbE over fiber
   IEEE 802.3z 1000BASE-X
   Auto MDI/MDIX support for 1000/10GBASE-T

Network Cables for 10GBASE-T

   CAT-6 (30 m max)
   CAT-6A
   CAT-7(100 m max)

Media Interface Exchange

   Auto MDI/MDIX adjustment for all twisted-pair ports


Performance

Switching Capacity
   DXS-1210-12TC: 240 Gbps

Maximum Packet Forwarding Rate
   DXS-1210-12TC: 178.56 Mpps

Transmission Method

   Store-and-forward

MAC Address Table

   Up to 16 ,000 entries per device

Physical/Environmental

AC Input

   100 to 240 VAC

Maximum Power Consumption
DXS-1210-12TC: 90.81 watts

Standby Power Consumption
   DXS-1210-12TC: 42.65 watts



Operating Temperature
  -5 to 50 ° C (23 to 122 ° F)

Storage Temperature
  -40 to 70 ° C (-40 to 158 ° F)

Operating Humidity

   0 % to 95 % non-condensing

Storage Humidity

   0 % to 95 % non-condensing

Dimensions (L x W x H)

   440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)

Weight
  DXS-1210-12TC: 3.15 kg

Diagnostic LEDs

   Link/Activity/Speed (Per 10GBASE-T port)
   Link/Activity/Speed (Per 10G SFP+ port)
   Power/Fan (Per device)

Certifications

   CE
   FCC
    C-Ticket
    VCCI
    BSMI
    CCC

Safety

   cUL
   CB
    CE
    CCC
    BSMI

Software

L2 Features

   MAC Address Table
       Up to 16K entries
   Static MAC Addresses
       1K
   IGMP Snooping
       IGMP v1/v2/v3 Snooping
       Supports 384 IGMP groups
       Supports at least 128 static multicast addresses
       Per VLAN IGMP Snooping
       Support host-based fast leave
   MLD Snooping
       MLD v1/v2 Snooping
       Support 384 groups
       Support 128 static multicast addresses
       Support host-based fast leave
   LLDP
   LLDP-MED
   Spanning Tree Protocol
       802.1D STP
       802.1w RSTP
       802.1s MSTP
   Flow Control
       802.3x Flow Control
       HOL Blocking Prevention
   Port Mirroring
       One-to-One
       Many-to-One
       Supports Mirroring for Tx/Rx/Both
   802.3ad Link Aggregation:
       Maximum of  8 groups/8 ports per group
   Jumbo Frame
       Up to 9KB
   Loopback Detection
   ERPS (Ethernet Ring Protection Switching)1

VLAN

   802.1Q VLAN
   Port-based VLAN
   4K VLAN Groups
   Configurable VID
       1~4094
   Voice VLAN1
   Auto Surveillance VLAN1
   GVRP1
   Asymmetric VLAN

Quality of Service (QoS)

   CoS based on
       802.1p Priority Queues
       DSCP
       ToS
       IPv6 Traffic Class
       TCP/UDP port
       VLAN ID
       MAC Address
       Ether Type
       IP Address
       Protocol Type
       IPv6 Flow Label
   802.1p Priority Queue
   8 queues per port
   Queue Handling
       Strict
       Weighted Round Robin (WRR)
       Deficit Round Robin (DRR)
       Weighted Deficit Round Robin (WDRR)
   Bandwidth Control
       Port-based (Ingress/Egress, min. granularity 64 Kbps)
       iSCSI Awareness1

L3 Features

   IP Interface
       Supports 16 IPv4/v6 interfaces
   ARP
       128 Static ARP
   Default Route1
   IPv6 Neighbor Discovery (ND)
   Static Route1
       Max. 32 IPv4 entries
       Max. 32 IPv6 entries

Access Control List (ACL)

   Max. 50 access list
   Max. 256 ACL rules
   Max. 50 VLAN access map1
   ACL based on
       802.1p priority
       VLAN1
       MAC address
       Ether type
   IP address
   DSCP
   Protocol type
   TCP/UDP port number
   IPv6 Traffic Class
   IPv6 flow label

Security

   Broadcast/Multicast/Unicast Storm Control
   D-Link Safeguard Engine
   DHCP Server Screening
   IP-MAC-Port Binding
       DHCP Snooping1
       IP Source Guard1
       Dynamic ARP Inspection1
       IPv6 Snooping1
       IPv6 Source Guard1
       DHCPv6 Guard1
       IPv6 ND Inspection1
       IPv6 Route Advertisement (RA) Guard1
   Traffic Segmentation
   SSH1
       Support v1/ v2
       Support IPv4/ IPv6
   SSL
       Support v1/v2/v3
       Support IPv4/IPv6
   ARP Spoofing Prevention1
       Max. 127 entries
   DoS Attack Prevention
   Port Security
       Supports up to 6656 MAC addresses per port
   Duplicate Address Detection


OAM

   Cable Diagnostics

AAA

   Web-based Access Control (WAC)1
       Support local/RADIUS database
       Support Port-based access control
       Support Host-based access control
       Support Dynamic VLAN Assignment
       Identity-driven Policy (VLAN/ACL/QoS) Assignment
   802.1X Authentication1
       Support Dynamic VLAN Assignment
       Identity-driven Policy (VLAN/ACL/QoS) Assignment
       Supports local/RADIUS database
       Supports Port-based access control
       Supports Host-based access control
       Supports EAP, OTP, TLS, TTLS, PEAP
   Support IPv4/IPv6 RADIUS Server1
   Support IPv4/IPv6  TACACS+1
   Guest VLAN1
   Compound Authentication1
   Authentication for management access
   Authentication Database Failover1
   MAC-based Access Control (MAC)1
       Support local/RADIUS database
       Support Port-based access control
       Support Host-based access control
       Support Dynamic VLAN Assignment
       Identity-driven Policy (VLAN/ACL/QoS) Assignment

Management

   Web-based GUI
   D-Link Network Assistant Utility
   Compact CLI
   Telnet Server
   TFTP Client
   Configurable MDI/MDIX
   SNMP
       Supports v1/v2c/v3
   SNMP Trap
   Smart Wizard
   LLDP
   LLDP-MED
   DHCP Relay1
   System Log
   BootP/DHCP Client
   SNTP1
   ICMP v6
   IPv4/v6 Dual Stack
   DHCP Auto Configuration1
   RMON v1/v21
   Trusted Host
   Dual Images
   Dual Configurations1
   DNS Client1
   Debug command

Green V3.0 Technology

   Power Saving by:
       LED Shutoff
   System Hibernation
   Port Shutoff

MIB/RFC Standards

   RFC 783 TFTP
   RFC 951 BootP/DHCP Client
   RFC 1157 SNMP v1, v2, v3
   RFC 1213 MIB II
   RFC 1215 MIB Traps Convention
   RFC 1350 TFTP
   RFC 1493 Bridge MIB
   RFC 1769 S
