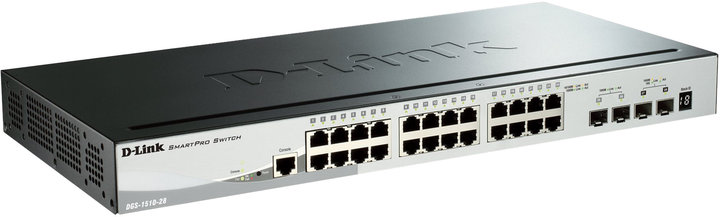

D-Link DGS-1510-28X 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ ports (smart fans)

Informace k záruce:
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.

http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in

General

Port Standards & Functions

   IEEE 802.3 10BASE-T Ethernet
   IEEE 802.3u 100BASE-TX Fast Ethernet
   IEEE 802.3ab 1000BASE-T Gigabit Ethernet
   802.3ae 10 GbE
   IEEE 802.3x Flow Control for Full-Duplex Mode
   Auto-negotiation

Number of Ports
  DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+


Network Cables

   UTP Cat. 5, Cat. 5e (100 m max.)
   EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex

   Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange

   Auto or configurable MDI/MDIX

Performance

Switching Capacity

   DGS-1510-28X - 128 Gbps

Transmission Method

   Store-and-forward

MAC Address Table

   16,000 entries per device

MAC Address Update

   Up to 512 static MAC entries
   Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
   DGS-1510-28X - 95.24 Mpps


Packet Buffer Memory

   DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device

Physical & Environment

AC Input

   100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

   DGS-1510-28X - 22.3 W


Standby Power Consumption

   DGS-1510-28X - 15.2 W


Smart Fan Quantity

   DGS-1510-20/28/28X – 1

Acoustics

   DGS-1510-28X - 42.7 dB(A)

Heat Dissipation

   DGS-1510-28X - 76.043BTU/hr


Operation Temperature

   -5 to 50 °C (23 to 122 °F)

Storage Temperature

   -20 to 70°C (-4 to 158 °F)

Operation Humidity

   0% to 95% non-condensing

Storage Humidity

   0% to 95% non-condensing

Dimensions

   DGS-1510-28X - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)


Weight
   DGS-1510-28X - 2.00 kg


Diagnostic LEDs

   Power/Stacking ID/Fan (per device)
   Link/Activity/Speed (per 10/100/1000 Mbps port)
   Link/Activity/Speed (per Gigabit SFP port)
   Link/Activity/Speed (per 10G SFP+ port)

Certifications

   CE
   FCC
   C-Tick
   VCCI
   BSMI
   CCC

Safety

   cUL
   CB

Software Features

Stackability

   Virtual Stacking Support
       D-Link Single IP Management
       Up to 32 devices per virtual stack
       Up to 20G stacking bandwidth
   Physical Stacking1
       Supports Duplex Chain/Ring topology
       Up to 40G stacking bandwidth full duplex
       Up to 6 units per stack

L2 Features

   MAC Address Table: Up to 16,384
   Flow Control
       802.3x Flow Control
       HOL Blocking Prevention
   Jumbo Frame up to 9,216 Bytes
   IGMP Snooping
       IGMP v1/v2 Snooping
       IGMP v3 awareness
       Supports 512 IGMP groups
       Supports 128 static multicast addresses
       IGMP per VLAN
       Supports IGMP Snooping Querier
       Host-based IGMP Snooping Fast Leave
   MLD Snooping
       Supports MLD v1/v2 awareness
       Supports 512 groups
       Supports 128 Static Multicast Addresses
       Per VLAN MLD Snooping
       Host-based MLD Fast Leave
       MLD Snooping Querier
    Spanning Tree Protocol
       802.1D STP
       802.1w RSTP
       802.1s MSTP
   Loopback Detection v4.072
    802.3ad Link Aggregation
       Max. 32 groups per device/8 ports per group
   Port Mirroring
       Support 4 mirroring groups
       One-to-One, Many-to-One
       Supports Mirroring for Tx/Rx/Both
   Multicast Filtering
       Forwards all unregistered groups
       Filters all unregistered groups
   Ethernet Ring Protection Switching (ERPS)

VLAN

   802.1Q Tagged VLAN
   4K VLAN Groups
   Configurable VID: 0~4094
   GVRP
   Asymmetric VLAN
    Auto Voice VLAN
   Auto Surveillance VLAN  2.02
   MAC-based VLAN
   Protocol-based VLAN

Quality of Service (QoS)

   CoS based on
       802.1p priority
       VLAN
       MAC address
       Ether type
       IP address
       DSCP
       Protocol type
       TC
