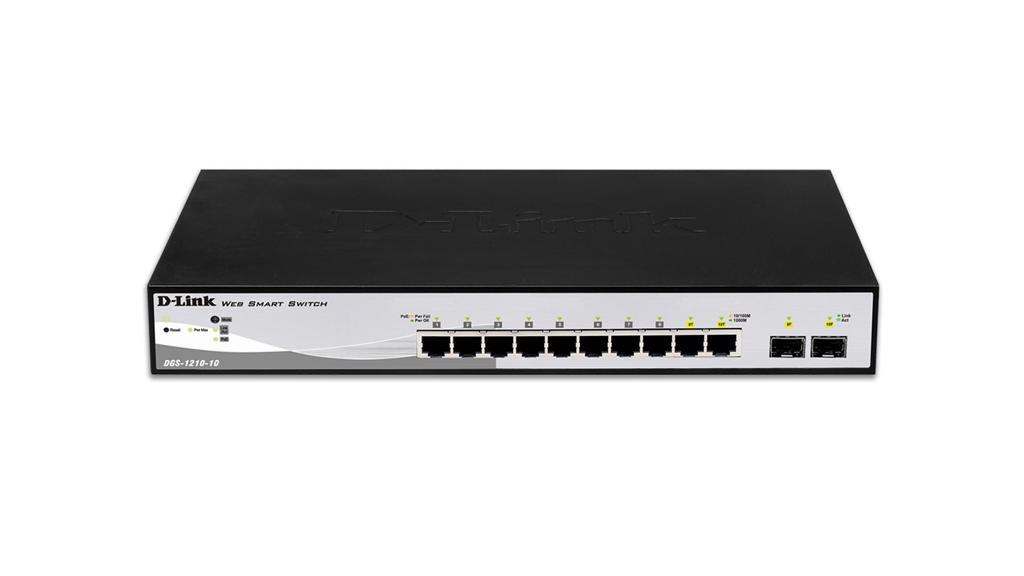

D-Link DGS-1210-10 10port Gbit Smart Sw,2xSFP

OVERVIEW
D-Link’s DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility,
and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritised for a smoother voice performance.

SPECIFICATIONS
INTERFACE
Number of 10/100/1000BASE-TX ports

   8 ports

Number of SFP ports

   2 ports

PERFORMANCE
Switch Capacity

   20 Gbps

64-Byte Packet Forwarding Rate

   14.88 Mpps

MAC Address Table Size

   16K

Packet Buffer

   1.5 MB per device

Jumbo Frame

   Up to 9,216 Bytes

PHYSICAL & ENVIRONMENTAL
Power Consumption (Standby/Maximum)

   9.4W / 13.59W

Power Input

   10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)

   280 x 168 x 44 mm

Weight

   1.54 kg

Ventilation

   faneless

Heat Dissipation

   46.37 BTU per hour

Temperature

   Operating: -5° to 50°C
   Storage: -20° to 70°C

Humidity

   Operating: 0% ~ 95% non-condensing
   Storage: 0% ~ 95% non-condensing

Certification

   CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

SOFTWARE FEATURE
L2 Features

   MAC Address Table

- 16K entries

   IGMP Snooping

- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier

   Loopback Detection
   802.3ad Link Aggregation:

- Maximum of 5 groups/8 ports per group

   LLDP
   LLDP-MED
   Jumbo Frame

- Up to 9,216 bytes1

   Spanning Tree Protocol

- 802.1D STP
- 802.1w RSTP

   Flow Control

- 802.3x Flow Control
- HOL Blocking Prevention

   Port Mirroring

- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both

   Multicast Filtering

- Forwards all unregistered groups
- Filters all unregistered groups

   Configurable MDI/MDIX

- MLD snooping v1/v2 (256 groups)

VLAN

   802.1Q
   VLAN Group

- Max. 256 static VLAN groups

   Configurable VID from 1 - 4094
   Asymmetric VLAN
   Auto Voice VLAN

- Max. 10 user-defined OUI
- Max. 8 default OUI

   Auto Surveillance VLAN

Quality of Service (QoS)

   802.1p Quality of Service
   8 queues per port2
   Queue Handling

- Strict
- Weighted Round Robin (WRR)

   Bandwidth Control

- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)

   QoS based on:

- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port

L3 Features

   IP Interface

- Supports 1 interface

   IPv6 Neighbor Discovery (ND)

Access Control List (ACL)

   Max. 50 access list
   Max. 768 rules shared by IPv4, MAC and IPv63
   Each rule can only be associated with a single port
   ACL based on

- 802.1p priority
- VLAN
- MAC address

   Ether type
   IP address
   DSCP
   Protocol type
   TCP/UDP port number
   IPv6 Traffic Class

Security

   Broadcast/Multicast/Unicast Storm Control
   D-Link Safeguard Engine
   DHCP Server Screening
   IP-MAC-Port Binding (Smart Binding)

- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping

   802.1X Port-based Access Control
   ARP Spoofing Prevention

- Max. 64 entries

   Traffic Segmentation
   SSH v2
   SSL

- Supports v1/v2/v3

   Port Security

- Supports up to 64 MAC addresses per port

   Duplicate address detection

AAA

   802.1X Authentication

- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP

   IPv6 RADIUS Server
   Support MD5 authentication

MIB/RFC Standards

   RFC 783 TFTP
   RFC 951 BootP/DHCP Client
   RFC 1157 SNMP v1, v2, v3
   RFC 1213 MIB II
   RFC 1215 MIB Traps Convention
   RFC 1350 TFTP
   RFC 1493 Bridge MIB
   RFC 1769 SNTP
   RFC 1542 BootP/DHCP Client
   RFC 1901 SNMP v1, v2, v3
   RFC 1907 SNMP v2 MIB
   RFC 1908 SNMP v1, v2, v3
   RFC 2131 BootP/DHCP Client
   RFC 2138 RADIUS Authentication
   RFC 2139 RADIUS Authentication
   RFC 2233 Interface Group MIB
   RFC-2246 SSL
   RFC 2475
   RFC 2570 SNMP v1, v2, v3
   RFC 2575 SNMP v1, v2, v3
   RFC 2598 CoS
   RFC 2618 RADIUS Authentication
   RFC 2819 RMON v1
   RFC 2865 RADIUS Authentication
   RFC 3164 System Log
   RFC 3195 System Log
   RFC 3411-17 SNMP
   D-Link Private MIB
   LLDP MIB
   Zone Defense MIB
   2233 Interface Group MIB

OAM

   Cable Diagnostics
   Factory Reset

Management

   Web-based GUI
   D-Link Network Assistant Utility
   Compact CLI
   Telnet Server
   TFTP Client
   Configurable MDI/MDIX

- SNMP

   Supports v1/v2c/v3
   SNMP Trap
   Backup/Upgrade firmware
   Smart Wizard
   Upload/Download Configuration file
   System Log

- Max. 500 log entries

   BootP/DHCP Client
   SNTP
   ICMP v6
   IPv4/v6 Dual Stack
   DHCP Auto Configuration
   Time Setting

- SNTP

   RMONv1
   Trusted Host

Green V3.0 Technology

   Power Saving by

- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
- LED Shutoff
- System Hibernation
- Port Shutoff
