ATEN True 4K DisplayPort to HDMI Active Adapter

ATEN True 4K DisplayPort to HDMI Active

Výrobce
ATEN
Part No.

VC986B-AT

Kód

787423

Video Input Interfaces 1 x DisplayPort Male (White) Video Output Interfaces 1 x HDMI Type A Female (Black) Video Max. Pixel Clock 600 MHz Max. Resolution 4096x2160@60Hz / 3840x2160@60Hz Compliance DP1.2a / HDMI 2.0 / HDCP 2.2 Max. Data Rate 18 Gbp

DPH
21%
981 Kč s DPH
811 Kč bez DPH
Dostupnost
Dostupnost na pobočkách
Záruka
2 Roky

    Podrobnosti o produktu

    Video Input
    Interfaces 1 x DisplayPort Male (White)
    Video Output
    Interfaces 1 x HDMI Type A Female (Black)
    Video
    Max. Pixel Clock 600 MHz
    Max. Resolution 4096x2160@60Hz / 3840x2160@60Hz
    Compliance DP1.2a / HDMI 2.0 / HDCP 2.2
    Max. Data Rate 18 Gbps (6 Gbps Per Lane)
    Audio
    Output 1 x HDMI Type A Female (Black)
    Environmental
    Operating Temperature 0 - 50 oC
    Storage Temperature -20–60 oC
    Humidity 0 - 80% RH, Non-Condensing
    Physical Properties
    Housing Plastic
    Weight 0.04 kg ( 0.09 lb )
    Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm
    (7.09 x 1.77 x 0.59 in.)
    Carton Lot 40 pcs
    Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

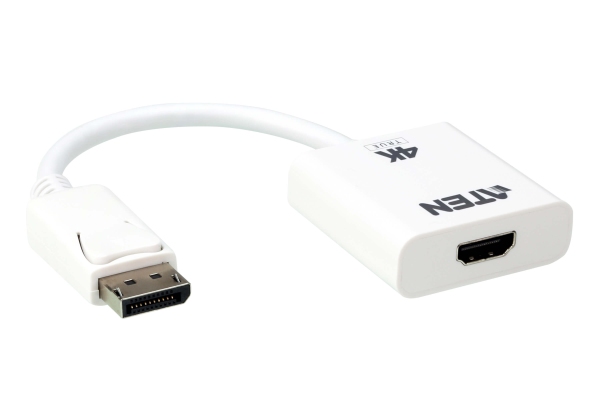

    The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display.

    The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.

    *Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.

    Converts DisplayPort signals to HDMI output
    Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K
    Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)
    Supports AMD Eyefinity™ Technology (multi-screen setups)
    Audio supported
    No software or driver installation required
    DisplayPort 1.2 compliant

    Plug-n-Play

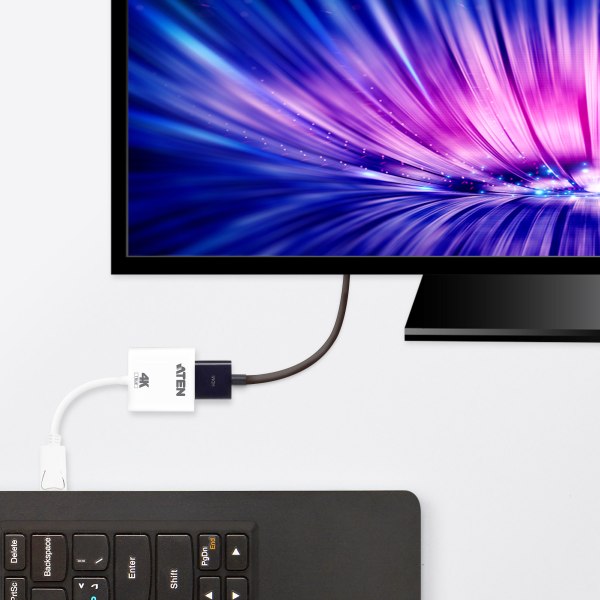

    No installation software or drivers required. The VC986B is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++.

    Supports True 4K
    Supports resolutions up to True 4K, making it highly compatible across devices.

    Superior Signal Quality

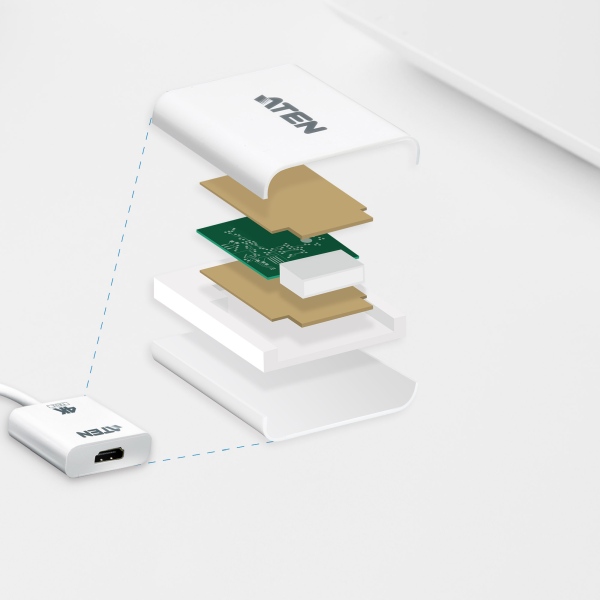

    The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.

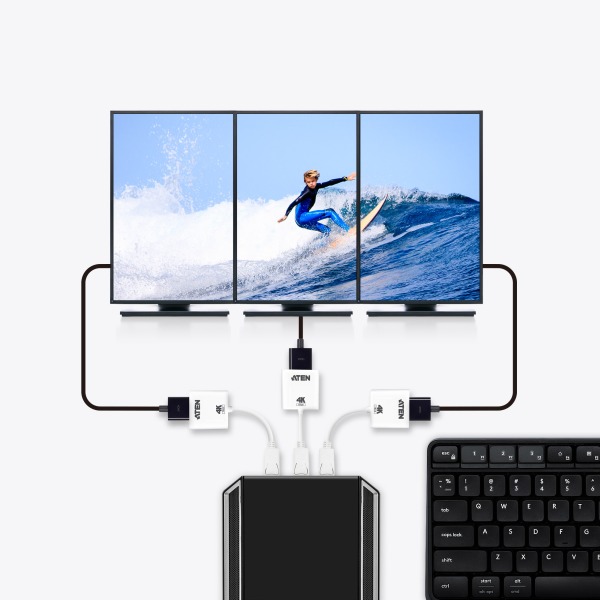

    Supports Multi-Screen Technology
    Compatible with AMD Eyefinity graphics cards for multiple display applications.

    Package Contents
    1x VC986B True 4K DisplayPort to HDMI Active Adapter
