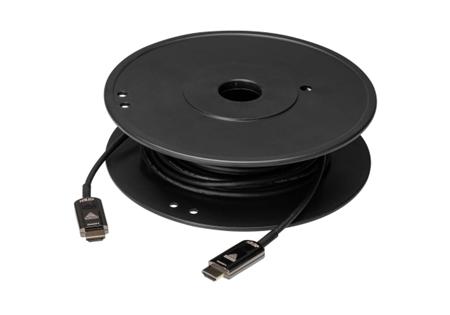

ATEN 20M True 4K HDMI 2.0 Active Optical Cable (True 4K@20m)

ATEN VE781020 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 20m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781020 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Certifications
Certifications Safety and Emission: CE / FCC / RoHS2
EMC Class-A / Class-B
Notification Bend Radius: 6mm (Min.)
Compression Load Resistance: Max. 50kg (500N)
Cable Filler: Kevlar
Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE
* NO external power required
Jacketed
Material PVC (85P)
Color: Black
Conductor
Construction 7 x Tinned Copper wire strand (30 AWG *2 / 28AWG *3 / 26 AWG *1 / 24 AWG *1)
4 x OM3 Optical Fiber (50/125um)
Cable Length 20M / 65.6ft
Communication
Signals TMDS / HDCP 2.2 / EDID / CEC
Audio
Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Cable Type Hybrid type with optical fiber (OM3) and copper wire
Video Input
Interfaces 1 x HDMI 19-pin Type-A Male
Video Output
Interfaces 1 x HDMI 19-pin Type-A Male
Video
Max. Data Rate 18 Gbps (6 Gbps per Channel)
Max. Pixel Clock 600 MHz (Max.)
Compliance HDMI 2.0 (3D, Deep Color, 4K, HDR, ARC)
HDCP 2.2
Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M
*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
*Color Depth: 30 / 36 / 48 bit
Power Consumption DC5.0V:0.25W:0.05ABTU
Environmental
Operating Temperature 0°C to 50°C (32? to 122?)
Storage Temperature -20°C to 70°C (-4? to 158?)
Humidity 0 - 85% RH, Non-Condensing
Physical Properties
Housing Connector Case: Zinc Alloy
Weight 0.65 kg ( 1.43 lb )
Cable Outer Dimension 4.5mm (± 0.2mm)
Conductor Gauge 7 x Tinned Copper wire strand (30 AWG *2 / 28AWG *3 / 26 AWG *1 / 24 AWG *1)
Conductor Material Tinned Copper
Carton Lot 5 pcs

Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
Extends True 4K signals up to 20m
Reduced EMI and RFI for lower noise interference
High data transfer rate of 18 Gbps
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)

Package Contents
1x VE781020 20M True 4K HDMI 2.0 Active Optical Cable
1x Installation Notice
